Precision from start to finish
A smooth arc ignition you can rely on allows greater control and precision. Weld Assist helps guide you to a faster set-up, even at lower current parameters. And lower noise levels help you maintain focus throughout your welds.
Powerful performance
Every Master T model has an increased power output, combined with features such as Double Pulse, MicroTack, and AutoCool, to give you a greater range of welding speed, control, and energy efficiency.
Productivity innovations
Every ACDC model includes unique modes: MAX WeldClean allows the Master T to function as an electrolytic cleaner, and DeMagnetization eliminating a remnant magnetic field of the parent object.
Master your TIG welding

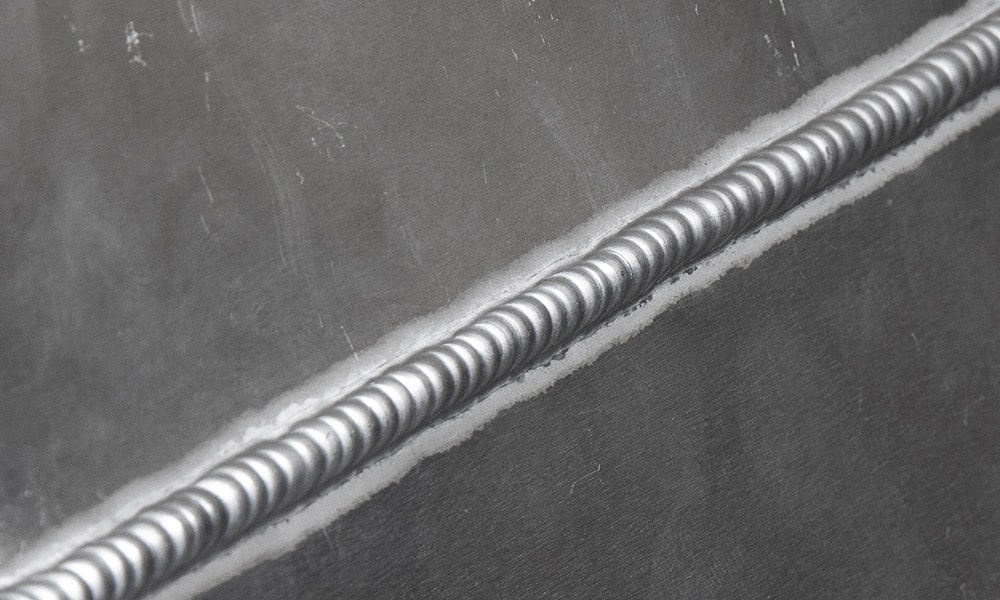

The Master T TIG welding machine sets the benchmark for weld quality, usability, and energy efficiency in professional AC DC TIG welding. Built for welders who demand precision and companies who value efficiency, Master T combines advanced welding performance with durability and ergonomics to excel in any environment.
Available in power variants up to 500 A, Master T delivers a smoother arc ignition, reduced noise levels, and enhanced control, ensuring consistent, high-quality results from start to finish. Weld Assist technology speeds up setup, even at lower currents, helping you meet tight deadlines without compromising weld quality.
Every Master T ACDC model comes equipped with two industry-leading features as standard:
- MAX WeldClean – transforms your Master T TIG welding machine into a powerful electrolytic cleaner, allowing you to make welds customer-ready without extra equipment.
- DeMagnetization mode – eliminating material magnetism for improved arc stability and direction.

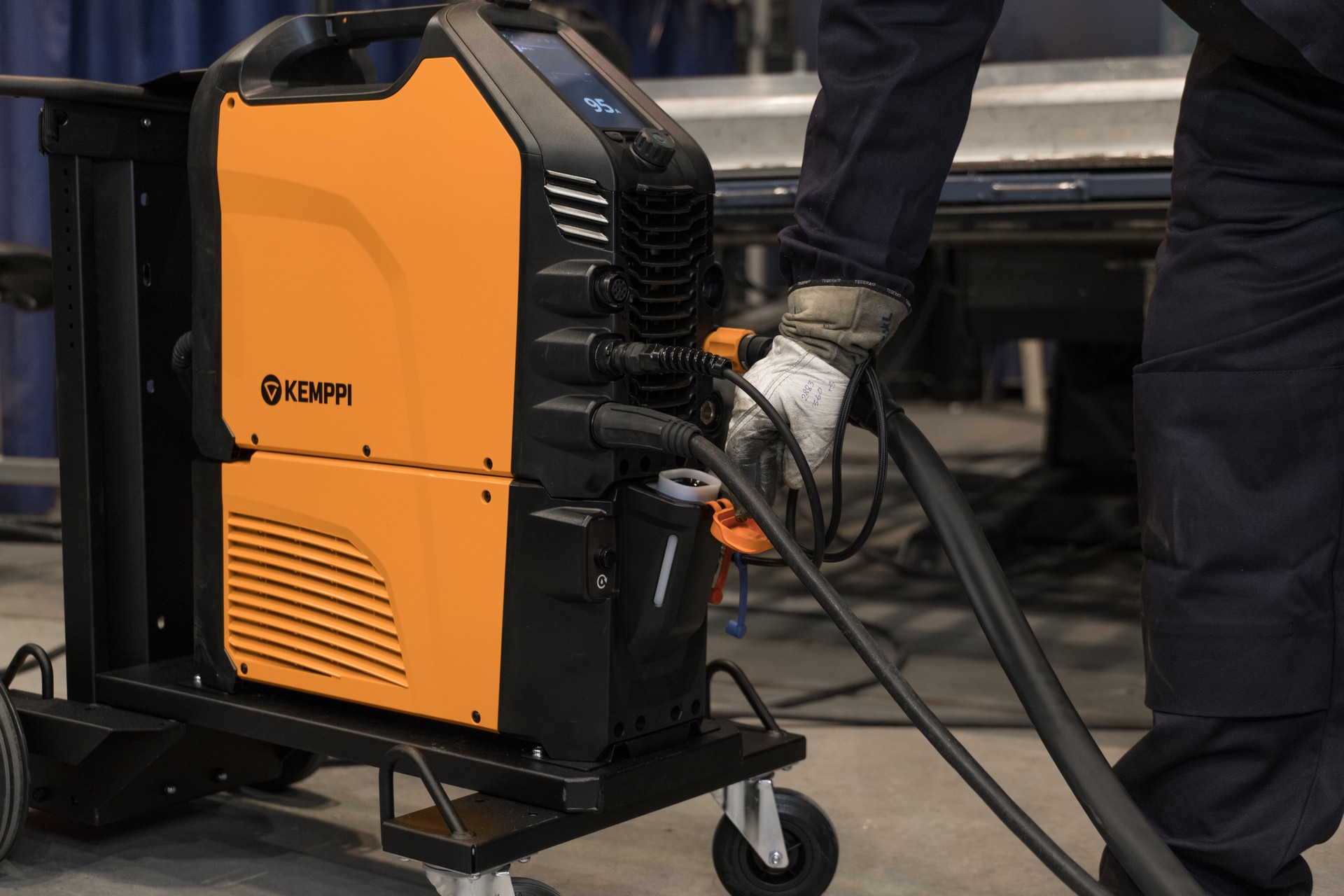

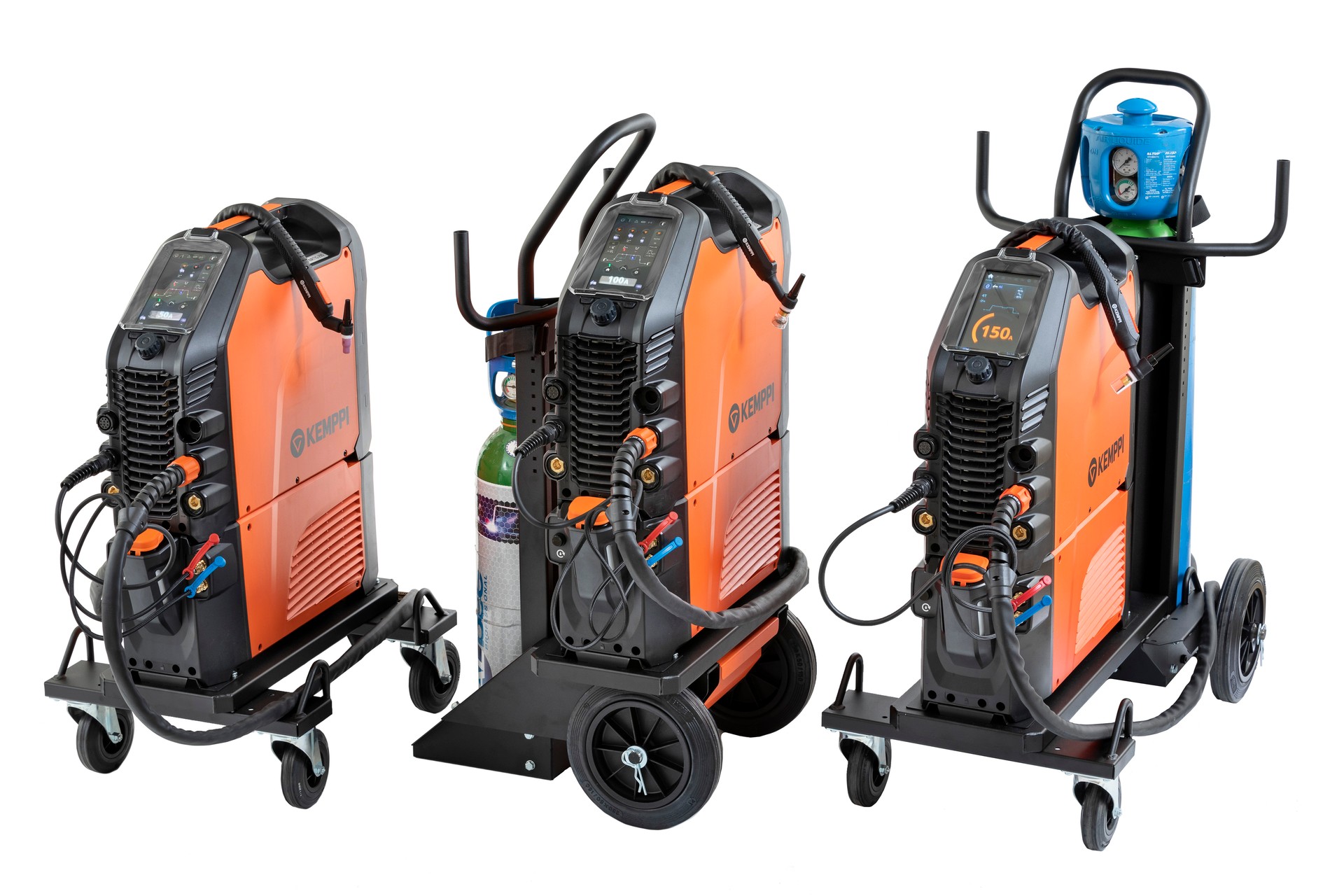

The Master T’s modular design lets you tailor your setup with alternative control panels, wireless remotes, and transport carts. Its robust, lightweight construction, crafted from impact-resistant injection-molded plastic, is designed to withstand the toughest welding conditions while remaining easy to handle. Paired with our Flexlite TX TIG torches, you get unmatched comfort and arc control for long shifts.
For welders, this means a reliable, easy-to-use machine that delivers top-tier results every time. It’s an investment in future-fit welding technology that improves productivity, reduces downtime, and supports sustainable, energy-efficient operations.
Master your craft with Master T — the professional’s choice for TIG welding.

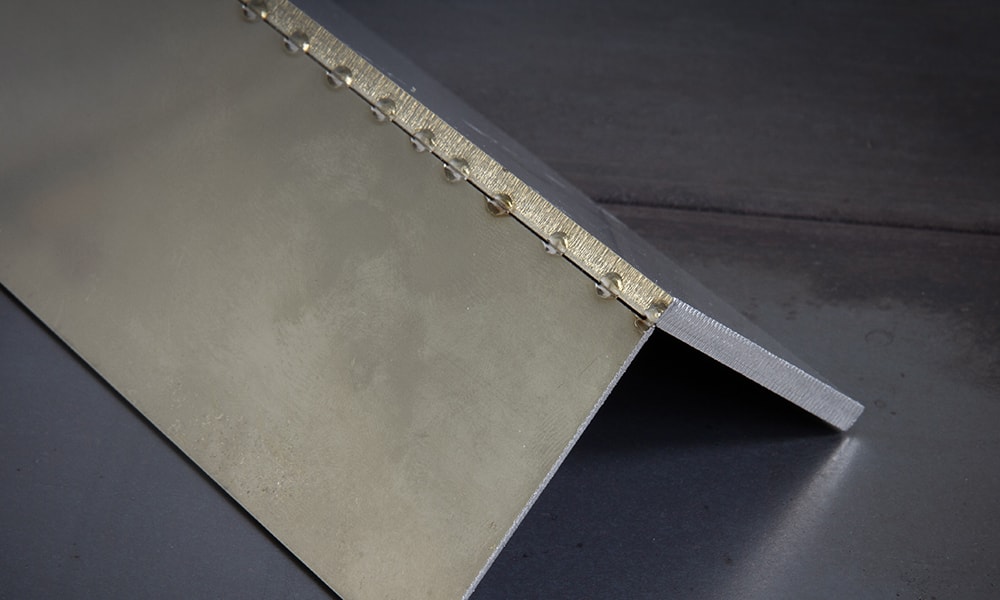

Electrolytic cleaning process
Every Master T ACDC model has an innovative and powerful electrolytic cleaning mode, MAX WeldClean, that removes oxidation and discoloration, finishing welds quickly. This saves time and money when post-processing stainless steel welds.
Videos
Related blogs
Magnetism in welding: how to deal with magnetic blow
When welding ferritic steels, especially high-strength grades, magnetic blow can become a real challenge. This phenomenon occurs when magnetic fields interfere with the welding arc, causing instability, spatter, and sometimes making welding almost impossible.
TIG Welding, Aluminum Welding, High-strength steel
How Rapid Welding and Kemppi Built a Partnership That Lasts
Rapid Welding has worked with Kemppi since the company opened in 1990. Co-founder and Managing Director Roy Edwards highlighted the principles behind that 36-year partnership, from choosing the right welding solution and supporting equipment throughout its life to addressing the skills shortage and finding the right place for automation and laser welding.
Cooperation, Partners
Kemppi's advanced welding processes: TIG and stick welding (MMA)
In TIG welding, process development has mainly focused on modifying the current modes in different situations. In practice, this means variations of pulse and AC welding, as well as ignition or tack welding. In the case of pulse welding, the welding machine user has numerous choices, as the adjustment possibilities for these process variations are highly versatile.
TIG welding, MMA welding, Pulse welding
Safety that keeps up with welders' challenges and changing risks
Welding safety has become increasingly demanding. The hazards at the arc remain constant, but modern working conditions mean exposure can accumulate over longer shifts and in tighter indoor spaces. As a result, welding PPE needs to be treated as both protection for the welder and proof of compliance. At Kemppi, welding safety PPE is designed and validated in practice through clear requirements, welder-led feedback, and verified compliance with EU PPE Regulation 2016/425, CE marking processes, and relevant EN standards.
Welding safety, Work safety, Welding helmet
Eurosatory 2026 And the Future of Defence Manufacturing
Eurosatory 2026 highlighted a clear shift in modern defence manufacturing. While defence systems are becoming more digital, networked, and autonomous, their foundation remains physical. From armoured vehicles and artillery to industrial resilience, welding quality, steel structures, and production discipline remain paramount to defence readiness.
MIG welding, TIG welding, Defence, Future welding, Eurosatory 2026
How AI Supports Quality, Traceability, and Flexibility in Robotic Welding
The AITOOLS1 webinar explored how AI-assisted process control, machine vision, synchronized data, and machine learning models are advancing robotic welding automation, improving quality management, traceability, and production flexibility for demanding industrial production.
AI, Automation, Traceability, Robotics, AI-assisted welding, adaptive robotic welding, machine vision in welding, welding quality, data-driven welding, intelligent welding automation
What Built to Last Really Means in Defence and Marine Welding
Critical defence and military vessels and marine structures are built for decades of demanding service. This article explores what 'built to last' means in welding, from harsh-condition reliability and repeatable weld quality to traceability across long vessel lifecycles.
Defence, Military , Welding, Manual welding, Kemppi X5
Master T 355 ACDC G AU — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 17 ... 14 A |
| Effective supply current [I1eff] | 11 ... 10 A |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 15 A |
| No-load voltage, MMA/TIG [U0] | 75 ... 95 V |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 350 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 270 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Power factor at rated maximum current [λ] | 0.9 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.9 MVA |
| Stick electrode diameter | 1.6 ... 6 mm |
| Voltage supply for cooling unit | 380...460 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 22.5 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, AS 60974.1-2020 |
Master T 505 ACDC GM — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection voltage (MV low range) | 220...230 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 6 mm² |
| Maximum supply current [I1max] | 31 ... 27 A |
| Maximum supply current (@MV low range) [I1max] | 44 ... 42 A |
| Effective supply current [I1eff] | 22 ... 20 A |
| Effective supply current (@MV low range) [I1eff] | 28 ... 27 A |
| Rated maximum input power [S1max] | 21 kVA |
| Mains fuse | 25 A |
| Mains fuse (@MV low range) | 32 A |
| No-load voltage, MMA/TIG [U0] | 70 ... 95 V |
| Idle power | 29 W |
| Output, duty cycle % at rated max. current, TIG | 40 % |
| Output at +40 °C, rated max current, TIG | 500 A |
| Output at +40 °C, 60% TIG | 400 A |
| Output at +40 °C, 100% TIG | 300 A |
| Output, duty cycle % at rated max. current, MMA | 60 % |
| Output at +40 °C, rated max current, MMA | 400 A |
| Output at +40 °C, 60% MMA | 400 A |
| Output at +40 °C, 100% MMA | 300 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 40 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 450 A |
| Output at +40 °C, 60% TIG (@MV low range) | 400 A |
| Output at +40 °C, 100% TIG (@MV low range) | 300 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 40 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 380 A |
| Output at +40 °C, 60% MMA (@MV low range) | 320 A |
| Output at +40 °C, 100% MMA (@MV low range) | 270 A |
| Output range, TIG | 5 A / 1 V ... 500 A / 37 V |
| Output range, MMA | 10 A / 10 V ... 400 A / 39 V |
| Output range, TIG (@MV low range) | 5 A / 1 V ... 450 A / 32 V |
| Output range, MMA (@MV low range) | 10 A / 10 V ... 380 A / 37 V |
| Power factor at rated maximum current [λ] | 0.9 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 3.4 MVA |
| Arc-on signal for relay | 24 V / 50 mA |
| Stick electrode diameter | 1.6 ... 7 mm |
| Voltage supply for cooling unit | 380...460 V |
| Voltage supply for cooling unit (MV low range) | 220...230 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 35 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 890 mm |
| External dimensions, width | 263 mm |
| External dimensions, height | 610 mm |
| Weight without accessories | 57 kg |
| Standards | IEC 60974-1,-3,-10, GB/T 15579.1 |
Master T 505 ACDC GM AU — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection voltage (MV low range) | 220...230 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 6 mm² |
| Maximum supply current [I1max] | 31 ... 27 A |
| Maximum supply current (@MV low range) [I1max] | 44 ... 42 A |
| Effective supply current [I1eff] | 22 ... 20 A |
| Effective supply current (@MV low range) [I1eff] | 28 ... 27 A |
| Rated maximum input power [S1max] | 21 kVA |
| Mains fuse | 25 A |
| Mains fuse (@MV low range) | 32 A |
| No-load voltage, MMA/TIG [U0] | 70 ... 95 V |
| Idle power | 29 W |
| Output, duty cycle % at rated max. current, TIG | 40 % |
| Output at +40 °C, rated max current, TIG | 500 A |
| Output at +40 °C, 60% TIG | 400 A |
| Output at +40 °C, 100% TIG | 300 A |
| Output, duty cycle % at rated max. current, MMA | 60 % |
| Output at +40 °C, rated max current, MMA | 400 A |
| Output at +40 °C, 60% MMA | 400 A |
| Output at +40 °C, 100% MMA | 300 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 40 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 450 A |
| Output at +40 °C, 60% TIG (@MV low range) | 400 A |
| Output at +40 °C, 100% TIG (@MV low range) | 300 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 40 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 380 A |
| Output at +40 °C, 60% MMA (@MV low range) | 320 A |
| Output at +40 °C, 100% MMA (@MV low range) | 270 A |
| Output range, TIG | 5 A / 1 V ... 500 A / 37 V |
| Output range, MMA | 10 A / 10 V ... 400 A / 39 V |
| Output range, TIG (@MV low range) | 5 A / 1 V ... 450 A / 32 V |
| Output range, MMA (@MV low range) | 10 A / 10 V ... 380 A / 37 V |
| Power factor at rated maximum current [λ] | 0.9 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 3.4 MVA |
| Arc-on signal for relay | 24 V / 50 mA |
| Stick electrode diameter | 1.6 ... 7 mm |
| Voltage supply for cooling unit | 380...460 V |
| Voltage supply for cooling unit (MV low range) | 220...230 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 35 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 860 mm |
| External dimensions, width | 263 mm |
| External dimensions, height | 610 mm |
| Weight without accessories | 57 kg |
| Standards | IEC 60974-1,-3,-10, AS 60974.1-2006, GB/T 15579.1 |
Master T 355 DC G AU — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 17 ... 14 A |
| Effective supply current [I1eff] | 11 ... 10 A |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 16 A |
| No-load voltage, MMA/TIG [U0] | 75 ... 95 V |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 350 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 270 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Power factor at rated maximum current [λ] | 0.9 |
| Efficiency at rated maximum current [η] | 89 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.9 MVA |
| Stick electrode diameter | 1.6 ... 6 mm |
| Voltage supply for cooling unit | 380...460 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 21.5 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, AS 60974.1-2020 |
Master T 405 DC G — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 23 ... 19 A |
| Effective supply current [I1eff] | 16 ... 14 A |
| Rated maximum input power [S1max] | 15 kVA |
| Mains fuse | 16 A |
| No-load voltage, MMA/TIG [U0] | 70 ... 95 V |
| Idle power | 16 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 400 A |
| Output at +40 °C, 60% TIG | 320 A |
| Output at +40 °C, 100% TIG | 280 A |
| Output, duty cycle % at rated max. current, MMA | 40 % |
| Output at +40 °C, rated max current, MMA | 350 A |
| Output at +40 °C, 60% MMA | 320 A |
| Output at +40 °C, 100% MMA | 270 A |
| Output range, TIG | 5 A / 1 V ... 400 A / 41 V |
| Output range, MMA | 10 A / 10 V ... 350 A / 42 V |
| Power factor at rated maximum current [λ] | 0.91 |
| Efficiency at rated maximum current [η] | 89 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 2 MVA |
| Stick electrode diameter | 1.6 ... 7 mm |
| Voltage supply for cooling unit | 380...460 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 23.6 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, GB 15579.1 |
Master T 355 DC GM — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection voltage (MV low range) | 220...230 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 17 ... 14 A |
| Effective supply current [I1eff] | 11 ... 10 A |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 20 A |
| No-load voltage, MMA/TIG [U0] | 75 ... 95 V |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 350 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 270 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 40 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 300 A |
| Output at +40 °C, 60% TIG (@MV low range) | 230 A |
| Output at +40 °C, 100% TIG (@MV low range) | 190 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 40 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 250 A |
| Output at +40 °C, 60% MMA (@MV low range) | 230 A |
| Output at +40 °C, 100% MMA (@MV low range) | 190 A |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Output range, TIG (@MV low range) | 5 A / 1 V ... 300 A / 30 V |
| Output range, MMA (@MV low range) | 10 A / 10 V ... 250 A / 36 V |
| Power factor at rated maximum current [λ] | 0.85 |
| Efficiency at rated maximum current [η] | 88 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.4 MVA |
| Stick electrode diameter | 1.6 ... 6 mm |
| Voltage supply for cooling unit | 380...460 V |
| Voltage supply for cooling unit (MV low range) | 220...230 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 21.5 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, GB 15579.1 |
Master T 355 DC G — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 17 ... 14 A |
| Effective supply current [I1eff] | 11 ... 10 A |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 16 A |
| No-load voltage, MMA/TIG [U0] | 75 ... 95 V |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 350 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 270 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Power factor at rated maximum current [λ] | 0.9 |
| Efficiency at rated maximum current [η] | 89 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.9 MVA |
| Stick electrode diameter | 1.6 ... 6 mm |
| Voltage supply for cooling unit | 380...460 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 21.5 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, GB 15579.1 |
Master T 245 ACDC GM — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 220...240 V ±10 % |
| Mains connection voltage (MV low range) | 110...120 V ±10 % |
| Mains connection phases | 1~50/60 Hz |
| Mains connection cable type | 3G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Rated maximum input power [S1max] | 6 kVA |
| Mains fuse | 16 A |
| Mains fuse (@MV low range) | 16 A |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 240 A |
| Output at +40 °C, 60% TIG | 200 A |
| Output at +40 °C, 100% TIG | 170 A |
| Output, duty cycle % at rated max. current, MMA | 37 % |
| Output at +40 °C, rated max current, MMA | 180 A |
| Output at +40 °C, 60% MMA | 150 A |
| Output at +40 °C, 100% MMA | 120 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 40 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 130 A |
| Output at +40 °C, 60% TIG (@MV low range) | 120 A |
| Output at +40 °C, 100% TIG (@MV low range) | 90 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 40 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 85 A |
| Output at +40 °C, 60% MMA (@MV low range) | 75 A |
| Output at +40 °C, 100% MMA (@MV low range) | 55 A |
| Output range, TIG | 5 A / 1 V ... 240 A / 30 V |
| Output range, MMA | 10 A / 10 V ... 180 A / 40 V |
| Output range, TIG (@MV low range) | 5 A / 1 V ... 130 A / 24 V |
| Output range, MMA (@MV low range) | 10 A / 10 V ... 85 A / 35 V |
| Power factor at rated maximum current [λ] | 0.99 |
| Efficiency at rated maximum current [η] | 84 % |
| EMC class | A |
| Arc-on signal for relay | 24 V / 50 mA |
| Stick electrode diameter | 1.6 ... 5 mm |
| Voltage supply for cooling unit | 220...240 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 8 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 19.1 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, GB 15579.1 |
Master T 355 ACDC — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 16 ... 13 A |
| Effective supply current [I1eff] | 11 ... 10 A |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 16 A |
| No-load voltage, MMA/TIG [U0] | 75 ... 95 V |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 350 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 270 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Power factor at rated maximum current [λ] | 0.93 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.7 MVA |
| Stick electrode diameter | 1.6 ... 6 mm |
| Voltage supply for cooling unit | 380...460 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 22 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, GB 15579.1 |
Master T 355 ACDC G — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 17 ... 14 A |
| Effective supply current [I1eff] | 11 ... 10 A |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 16 A |
| No-load voltage, MMA/TIG [U0] | 75 ... 95 V |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 350 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 270 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Power factor at rated maximum current [λ] | 0.9 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.9 MVA |
| Stick electrode diameter | 1.6 ... 6 mm |
| Voltage supply for cooling unit | 380...460 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 22.5 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, GB 15579.1 |
Master T 355 ACDC GM — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection voltage (MV low range) | 220...230 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 17 ... 14 A |
| Effective supply current [I1eff] | 11 ... 10 A |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 20 A |
| No-load voltage, MMA/TIG [U0] | 75 ... 95 V |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 350 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 270 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 40 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 300 A |
| Output at +40 °C, 60% TIG (@MV low range) | 230 A |
| Output at +40 °C, 100% TIG (@MV low range) | 190 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 40 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 250 A |
| Output at +40 °C, 60% MMA (@MV low range) | 230 A |
| Output at +40 °C, 100% MMA (@MV low range) | 190 A |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Output range, TIG (@MV low range) | 5 A / 1 V ... 300 A / 30 V |
| Output range, MMA (@MV low range) | 10 A / 10 V ... 250 A / 36 V |
| Power factor at rated maximum current [λ] | 0.89 |
| Efficiency at rated maximum current [η] | 86 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.4 MVA |
| Stick electrode diameter | 1.6 ... 6 mm |
| Voltage supply for cooling unit | 380...460 V |
| Voltage supply for cooling unit (MV low range) | 220...230 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 22.5 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, GB 15579.1 |
Master T 245 ACDC GM AU — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 240 V ±10 % |
| Mains connection voltage (MV low range) | 110 V ±10 % |
| Mains connection phases | 1~50/60 Hz |
| Mains connection cable type | 3G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Rated maximum input power [S1max] | 6 kVA |
| Mains fuse | 15 A |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 40 % |
| Output at +40 °C, rated max current, TIG | 240 A |
| Output at +40 °C, 60% TIG | 200 A |
| Output at +40 °C, 100% TIG | 170 A |
| Output, duty cycle % at rated max. current, MMA | 37 % |
| Output at +40 °C, rated max current, MMA | 180 A |
| Output at +40 °C, 60% MMA | 150 A |
| Output at +40 °C, 100% MMA | 120 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 40 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 130 A |
| Output at +40 °C, 60% TIG (@MV low range) | 120 A |
| Output at +40 °C, 100% TIG (@MV low range) | 90 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 40 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 85 A |
| Output at +40 °C, 60% MMA (@MV low range) | 75 A |
| Output at +40 °C, 100% MMA (@MV low range) | 55 A |
| Output range, TIG | 5 A / 1 V ... 240 A / 30 V |
| Output range, MMA | 10 A / 10 V ... 180 A / 40 V |
| Output range, TIG (@MV low range) | 5 A / 1 V ... 130 A / 24 V |
| Output range, MMA (@MV low range) | 10 A / 10 V ... 85 A / 35 V |
| Power factor at rated maximum current [λ] | 0.99 |
| Efficiency at rated maximum current [η] | 84 % |
| EMC class | A |
| Stick electrode diameter | 1.6 ... 5 mm |
| Voltage supply for cooling unit | 240 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 8 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 19.1 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, AS 60974.1-2020 |
Master T 355 DC — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 16 ... 13 A |
| Effective supply current [I1eff] | 11 ... 10 A |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 16 A |
| No-load voltage, MMA/TIG [U0] | 75 ... 95 V |
| Idle power | 20 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 350 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output at +40 °C, rated max current, MMA | 270 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Power factor at rated maximum current [λ] | 0.93 |
| Efficiency at rated maximum current [η] | 89 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 1.7 MVA |
| Stick electrode diameter | 1.6 ... 6 mm |
| Voltage supply for cooling unit | 380...460 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 21 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, GB 15579.1 |
Master T 405 DC G AU — Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Maximum supply current [I1max] | 23 ... 19 A |
| Effective supply current [I1eff] | 16 ... 14 A |
| Rated maximum input power [S1max] | 15 kVA |
| Mains fuse | 16 A |
| No-load voltage, MMA/TIG [U0] | 70 ... 95 V |
| Idle power | 16 W |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Output at +40 °C, rated max current, TIG | 400 A |
| Output at +40 °C, 60% TIG | 320 A |
| Output at +40 °C, 100% TIG | 280 A |
| Output, duty cycle % at rated max. current, MMA | 40 % |
| Output at +40 °C, rated max current, MMA | 350 A |
| Output at +40 °C, 60% MMA | 320 A |
| Output at +40 °C, 100% MMA | 270 A |
| Output range, TIG | 5 A / 1 V ... 400 A / 41 V |
| Output range, MMA | 10 A / 10 V ... 350 A / 42 V |
| Power factor at rated maximum current [λ] | 0.91 |
| Efficiency at rated maximum current [η] | 89 % |
| EMC class | A |
| Minimum short-circuit power of supply network [Ssc] | 2 MVA |
| Stick electrode diameter | 1.6 ... 7 mm |
| Voltage supply for cooling unit | 380...460 V |
| Welding connection type | R1/4 |
| Wired communication type | Analog, Kemppi Remote-Bus |
| Wireless communication type | Bluetooth |
| Transmitter frequency and power | 2400...2483.5 MHz, 10 dBm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 20 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 544 mm |
| External dimensions, width | 205 mm |
| External dimensions, height | 443 mm |
| Weight without accessories | 23.6 kg |
| Standards | IEC 60974-1,-3,-10, IEC 61000-3-12, AS 60974.1-2020 |
TX 455W 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1.5 kW |
| Coolant pressure | 1 ... 5 Bar |
| Load capacity 40% DC / Argon | 450 A |
| Load capacity 100 % DC / Argon | 320 A |
| Load capacity 40% AC / Argon | 320 A |
| Load capacity 100 % AC / Argon | 225 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Electrode diameter | 1 ... 4.8 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 135GF 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 130 A |
| Load capacity 40% AC / Argon | 100 A |
| Neck type | Bendable |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 2.4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 305WF 25m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Coolant pressure | 1 ... 5 Bar |
| Load capacity 40% DC / Argon | 300 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Bendable |
| Welding torch cable length | 25 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Electrode diameter | 1 ... 2.4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 455W 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1.5 kW |
| Coolant pressure | 1 ... 5 Bar |
| Load capacity 40% DC / Argon | 450 A |
| Load capacity 100 % DC / Argon | 320 A |
| Load capacity 40% AC / Argon | 320 A |
| Load capacity 100 % AC / Argon | 225 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Electrode diameter | 1 ... 4.8 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 135GF 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 130 A |
| Load capacity 40% AC / Argon | 100 A |
| Neck type | Bendable |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 2.4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 225GF 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 160 A |
| Neck type | Bendable |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 133GF 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 130 A |
| Load capacity 40% AC / Argon | 100 A |
| Neck type | Bendable |
| Welding torch cable length | 8 m |
| Remote control | No |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 4-pin |
| Electrode diameter | 1 ... 2.4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 255WFL 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 250 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Lockable, Rotating |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 225GFL 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 120 A |
| Neck type | Lockable, Rotating |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 305W 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 300 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 355W 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 350 A |
| Load capacity 100 % DC / Argon | 250 A |
| Load capacity 40% AC / Argon | 300 A |
| Load capacity 100 % AC / Argon | 200 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 305WF 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 300 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Bendable |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 305WF 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 300 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Bendable |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 225G 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 160 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Standards | IEC 60974-7 |
TX 225G 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 160 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 165GS 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 110 A |
| Neck type | Rotating |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Standards | IEC 60974-7 |
TX 165G 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 120 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Standards | IEC 60974-7 |
TX 165GF 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 100 A |
| Neck type | Bendable |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 165GS 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 110 A |
| Neck type | Rotating |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Standards | IEC 60974-7 |
TX 255WFL 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 250 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Lockable, Rotating |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 165GF 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 100 A |
| Neck type | Bendable |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 255WFL 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 250 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Lockable, Rotating |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 225GS 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 120 A |
| Neck type | Rotating |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 225GS 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 120 A |
| Neck type | Rotating |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 225GFL 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 120 A |
| Neck type | Lockable, Rotating |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 135GF 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 130 A |
| Load capacity 40% AC / Argon | 100 A |
| Neck type | Bendable |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Standards | IEC 60974-7 |
TX 305W 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 300 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | 70° angle |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 165GS 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 110 A |
| Neck type | Rotating |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Standards | IEC 60974-7 |
TX 165G 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 120 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 225GS 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 120 A |
| Neck type | Rotating |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 255WS 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 250 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Rotating |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 355W 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Coolant pressure | 1 ... 5 Bar |
| Load capacity 40% DC / Argon | 350 A |
| Load capacity 100 % DC / Argon | 250 A |
| Load capacity 40% AC / Argon | 300 A |
| Load capacity 100 % AC / Argon | 200 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 255WS 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 250 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Rotating |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 255WS 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 250 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Rotating |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 305WF 16m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 300 A |
| Load capacity 100 % DC / Argon | 200 A |
| Load capacity 40% AC / Argon | 250 A |
| Load capacity 100 % AC / Argon | 140 A |
| Neck type | Bendable |
| Welding torch cable length | 16 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 165GF 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 100 A |
| Neck type | Bendable |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 165G 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 160 A |
| Load capacity 40% AC / Argon | 120 A |
| Neck type | Rigid |
| Neck dimensions: angle | 70 ° |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Electrode diameter | 1 ... 4 mm |
| Operating temperature | -10 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
TX 355W 8m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Liquid |
| Minimum coolant flow rate | 1 l/min |
| Minimum cooling power at 1 l/min | 1 kW |
| Load capacity 40% DC / Argon | 350 A |
| Load capacity 100 % DC / Argon | 250 A |
| Load capacity 40% AC / Argon | 300 A |
| Load capacity 100 % AC / Argon | 200 A |
| Neck type | 70° angle |
| Welding torch cable length | 8 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Type of connection, cooling | Snap |
| Standards | IEC 60974-7 |
TX 225G 4m — Technical data
| Description | Value |
|---|---|
| Type of cooling | Air |
| Load capacity 40% DC / Argon | 220 A |
| Load capacity 40% AC / Argon | 160 A |
| Neck type | 70° angle |
| Welding torch cable length | 4 m |
| Remote control | Optional |
| Rating of electrical components (remote, nominal) | 10 V |
| Rating of electrical components (remote, nominal) | 10 mA |
| Type of connection, gas/current | G1/4 |
| Type of connection, control | 7-pin |
| Standards | IEC 60974-7 |
MasterTig Cooler MXL — Technical data
| Description | Value |
|---|---|
| Supply voltage | 220...460 V |
| Idle state power consumption [P1idle] | 5 W |
| EMC class | A |
| Tank volume | 3 l |
| Cooling power at 1 l/min | 1.7 kW |
| Maximum coolant pressure | 4 Bar |
| Recommended coolant | Kemppi MGP 4456 |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -20 ... 60 °C |
| Degree of protection (fully installed) | IP23S |
| External dimensions, length | 825 mm |
| External dimensions, width | 276 mm |
| External dimensions, height | 289 mm |
| Weight without accessories | 25 kg |
| Standards | IEC 60974-2, -10 |
MasterTig Cooler M — Technical data
| Description | Value |
|---|---|
| Supply voltage | 220...460 V |
| Idle state power consumption [P1idle] | 5 W |
| EMC class | A |
| Tank volume | 3 l |
| Cooling power at 1 l/min | 0.9 kW |
| Cooling power at 1.6 l/min | 1 kW |
| Maximum coolant pressure | 4 Bar |
| Recommended coolant | Kemppi MGP 4456 |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -20 ... 60 °C |
| Degree of protection (fully installed) | IP23S |
| External dimensions, length | 615 mm |
| External dimensions, width | 206 mm |
| External dimensions, height | 268 mm |
| Weight without accessories | 12.5 kg |
| Standards | IEC 60974-2, -10 |
