X3 FastMig MIG/MAG welding machine

The X3 FastMig offers high-quality industrial MIG/MAG welding with straightforward operation and an extremely simple user interface. The synergic power source delivers 420 A, and the pulse power source 450 A at a 60% duty cycle.

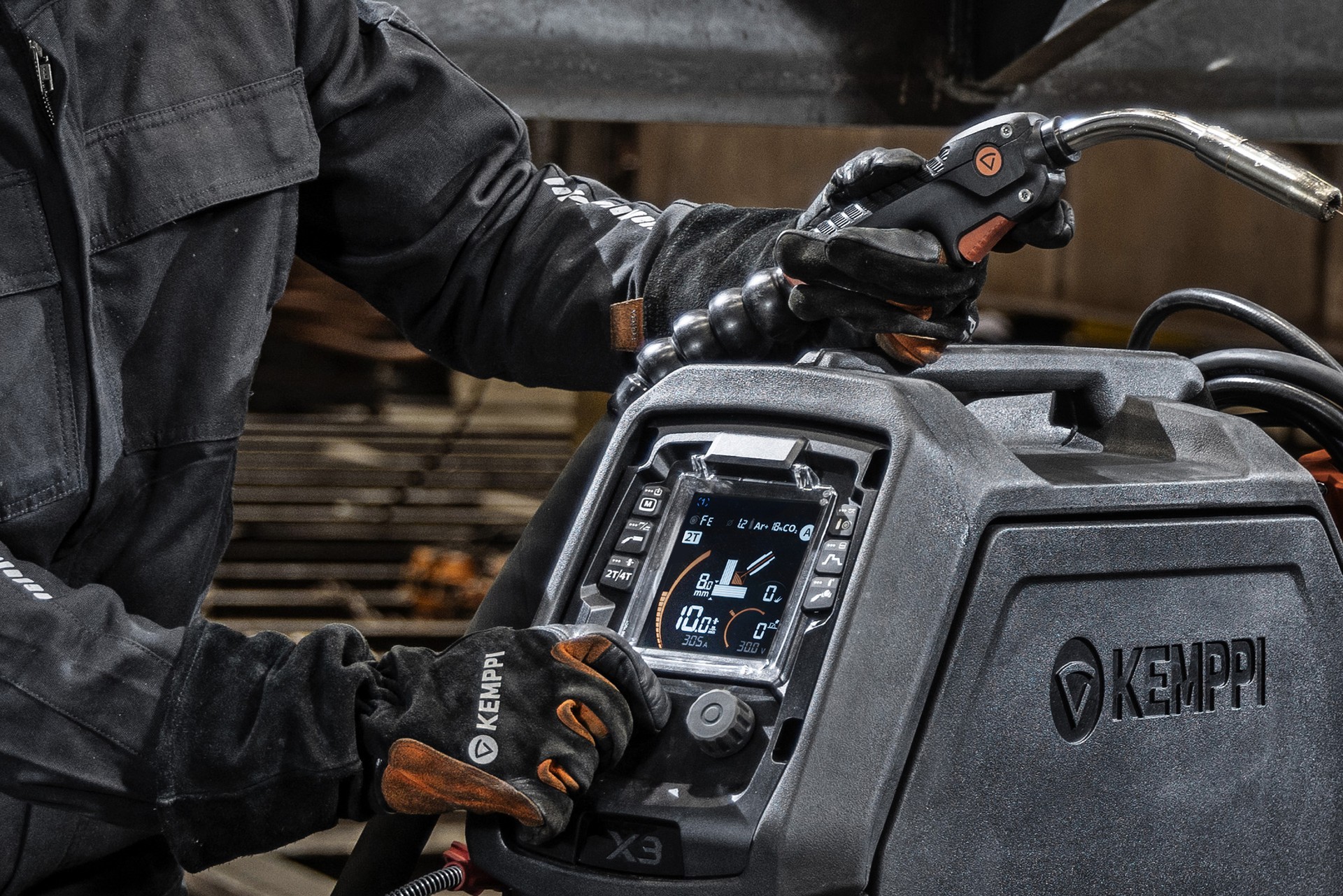

Simply start welding

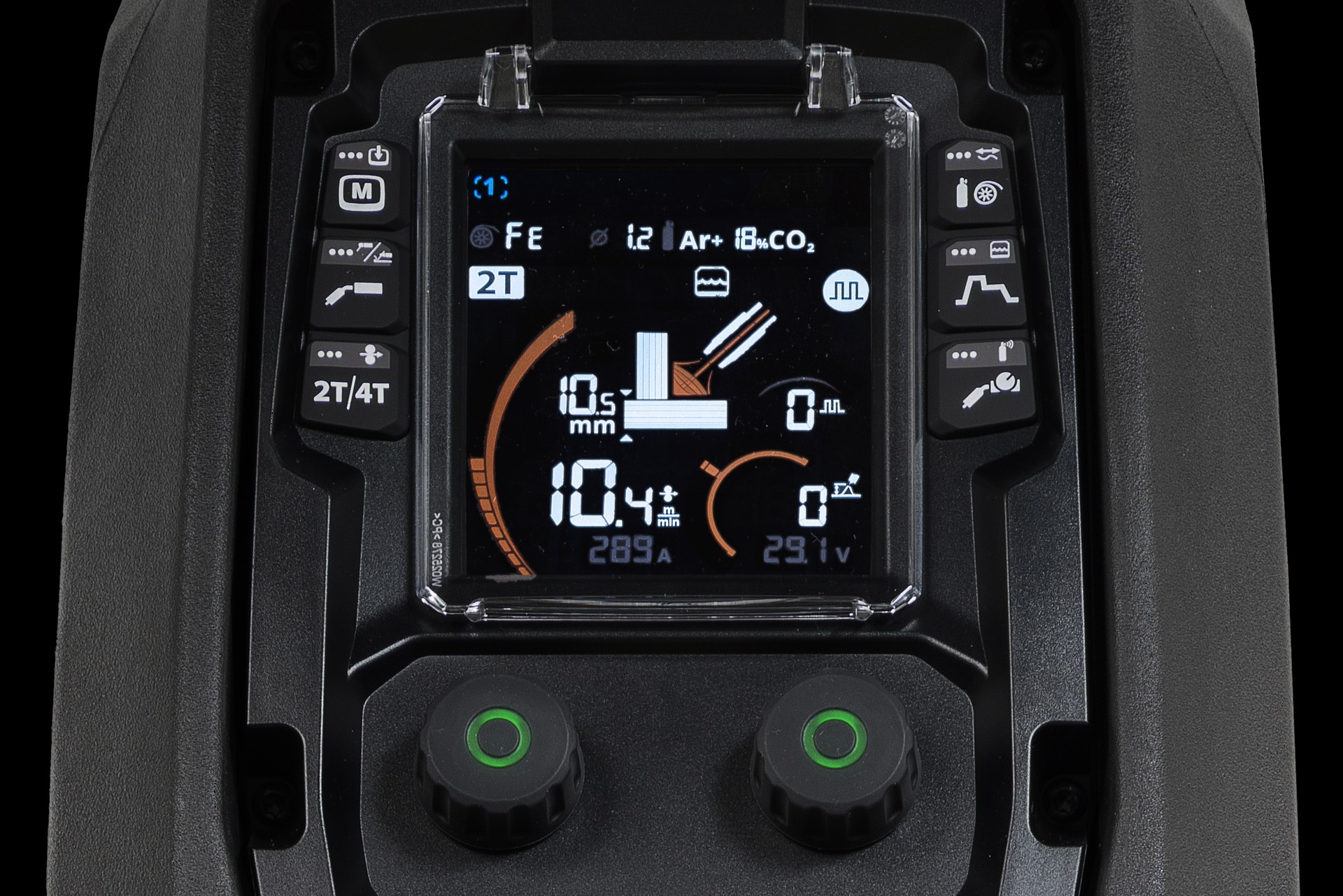

Designed for simplicity and ease of use, the X3 FastMig has a fast setup process and an icon-based user interface for streamlined parameter selection.

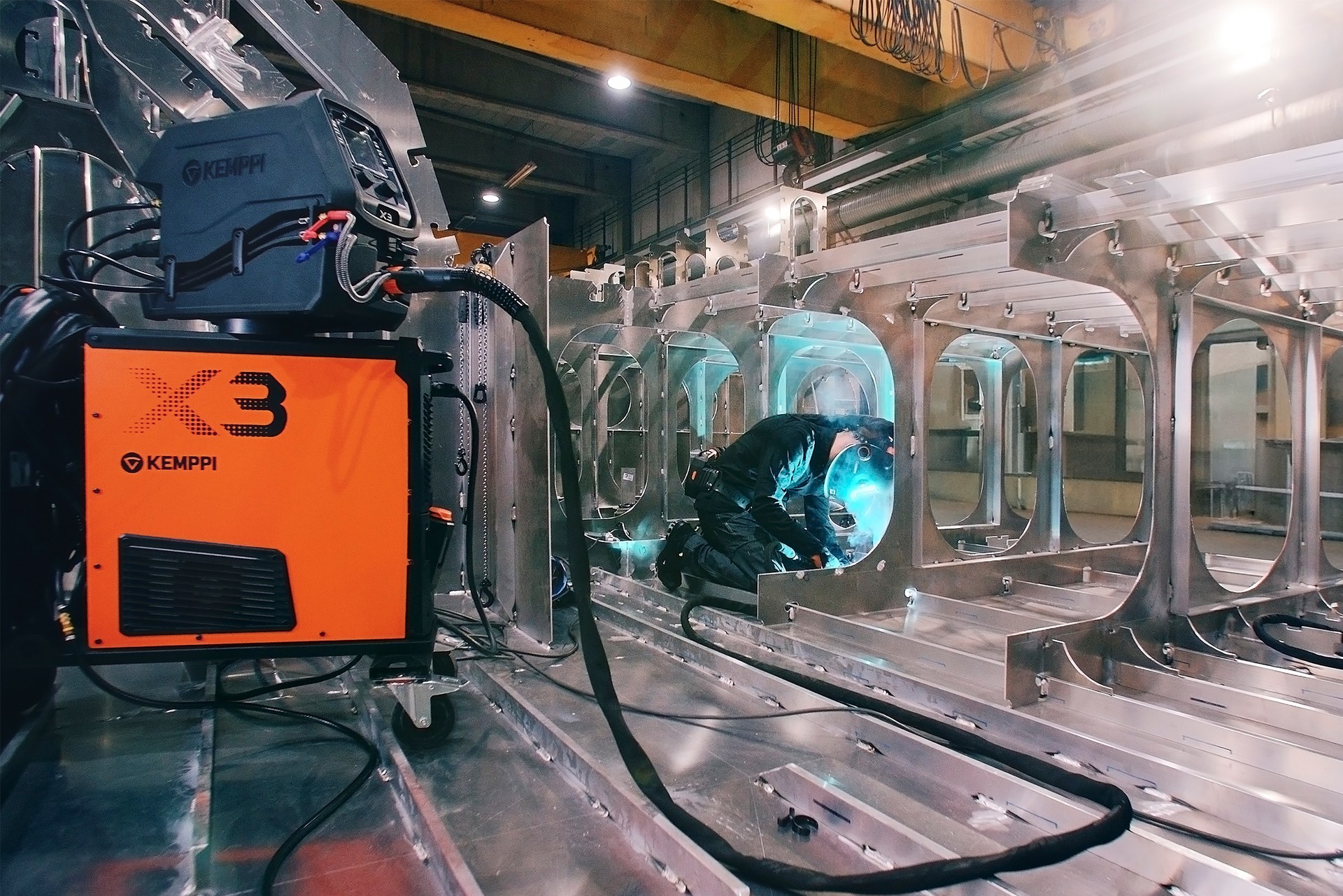

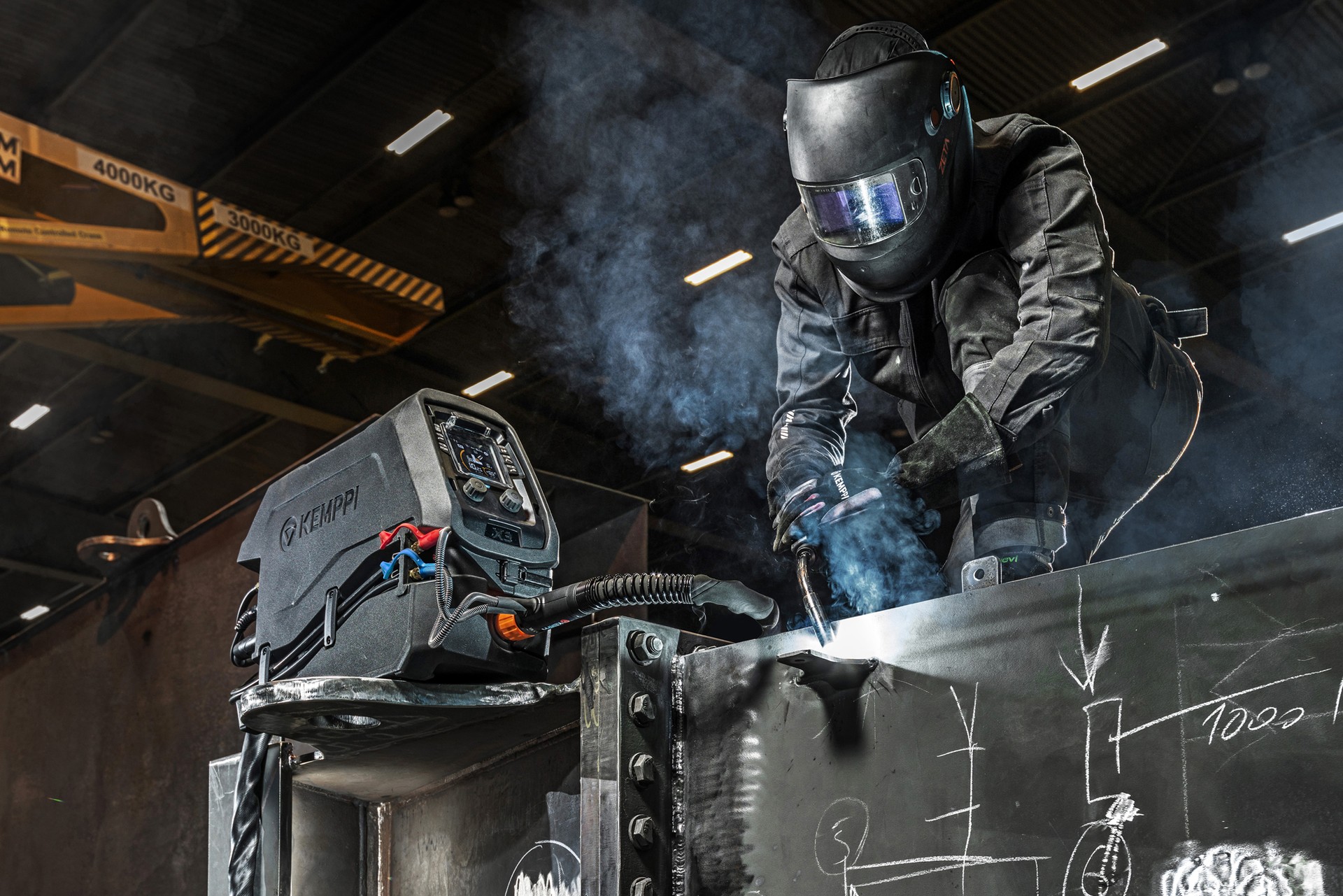

Work in tough conditions

With a robust design and durable wire feeder, the X3 FastMig was built for difficult jobs in the most challenging conditions. It looks tough, and it is.

Finish demanding jobs

With 420 or 450 amps at a 60% duty cycle, the X3 FastMig delivers powerful performance with high quality. Lock in on a task and keep going until it's done.

Overview
Product
Features
Accessories

Brilliantly simple, brutally effective MIG/MAG welding

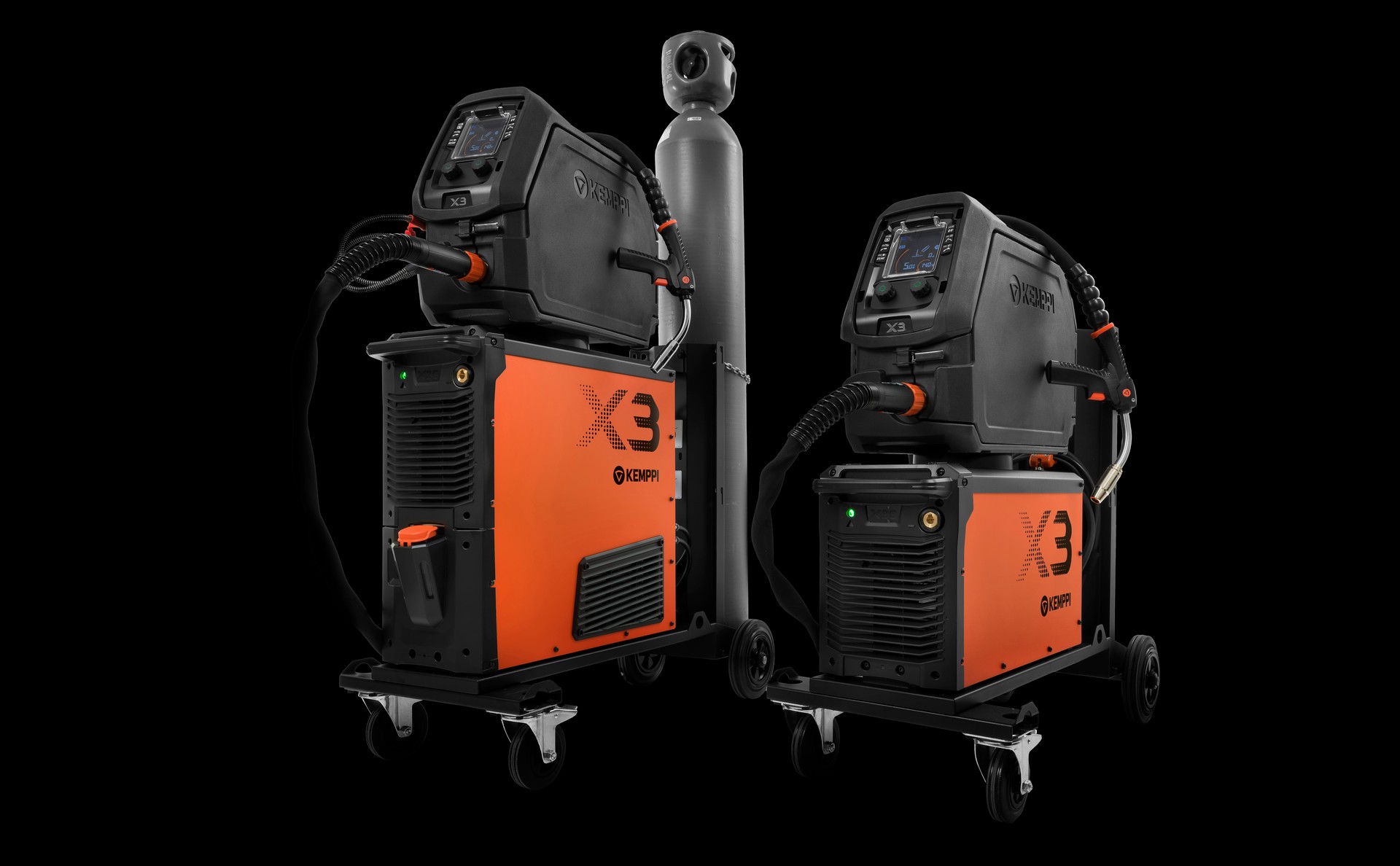

The X3 FastMig Synergic and Pulse MIG/MAG welding machines are the quickest way to complete high-quality welds in wide-ranging welding and fabrication environments. With a robust design and durable wire feeder, the X3 FastMig can handle the bumps and bangs of heavy industrial MIG/MAG welding. It looks tough, but it's also simple and precise. A new icon-based user interface saves time with a fast setup and easy parameter selection. The X3 FastMig gives you immediate control over key functions for a simple and reliable way to create high-quality welds.

It's a brilliantly simple MIG/MAG welder that is also extremely powerful. When tasks get tougher, the X3 FastMig is always ready to meet heavy production targets. Need to complete the biggest job on site? No problem. With 420 (X3S) or 450 amps (X3P) at a 60% duty cycle, the X3 is brutally effective without compromising on quality. Lock in on a task and keep going until it's done. The X3S and X3P FastMig are a perfect match for industrial welding where capable, accurate, and reliable welding equipment is essential and where MIG/MAG welder needs to support fast-changing and varying work tasks.

The X3 FastMig Synergic and Pulse models come with the X3 HD300 wire feeder, featuring a Duratorque 4x4 wire drive mechanism and a strong plastic case with dual-wall construction. The X3 HD300 wire feeder can be attached to the X3 FastMig's MIG/MAG power source with a rotating plate. The safe-lift design allows the wire feeder to be lifted and suspended by the handle. Add a 4-wheel trolley or do more by adding accessories like a hanger for boom for the HD300 wire feeder. Adjust parameters while welding with the HR53 hand remote or GRe50 torch remote control which are available as optional accessories.

X3 FastMig MIG/MAG welding machine

Brilliantly simple, brutally effective MIG/MAG welding

Find a dealer

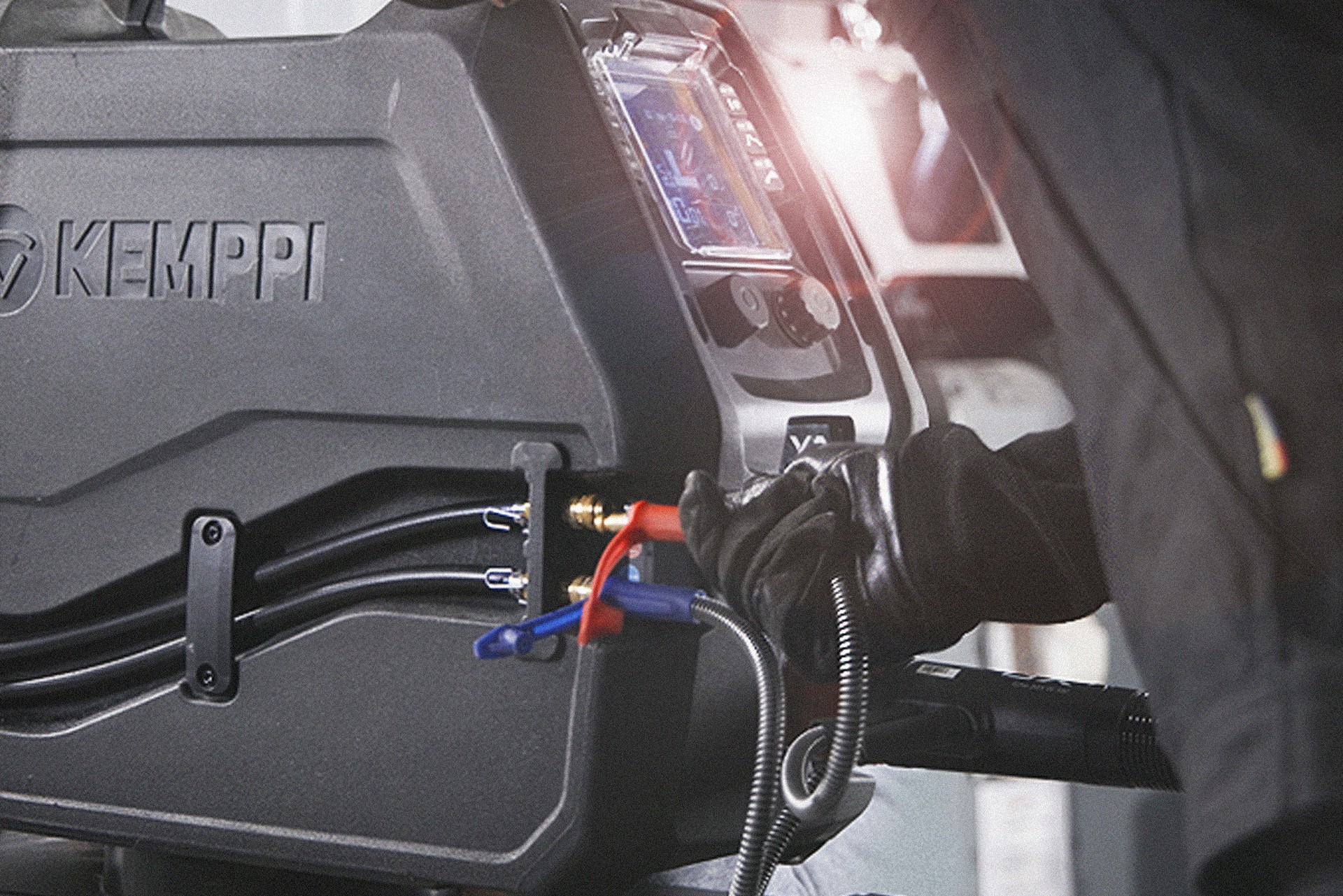

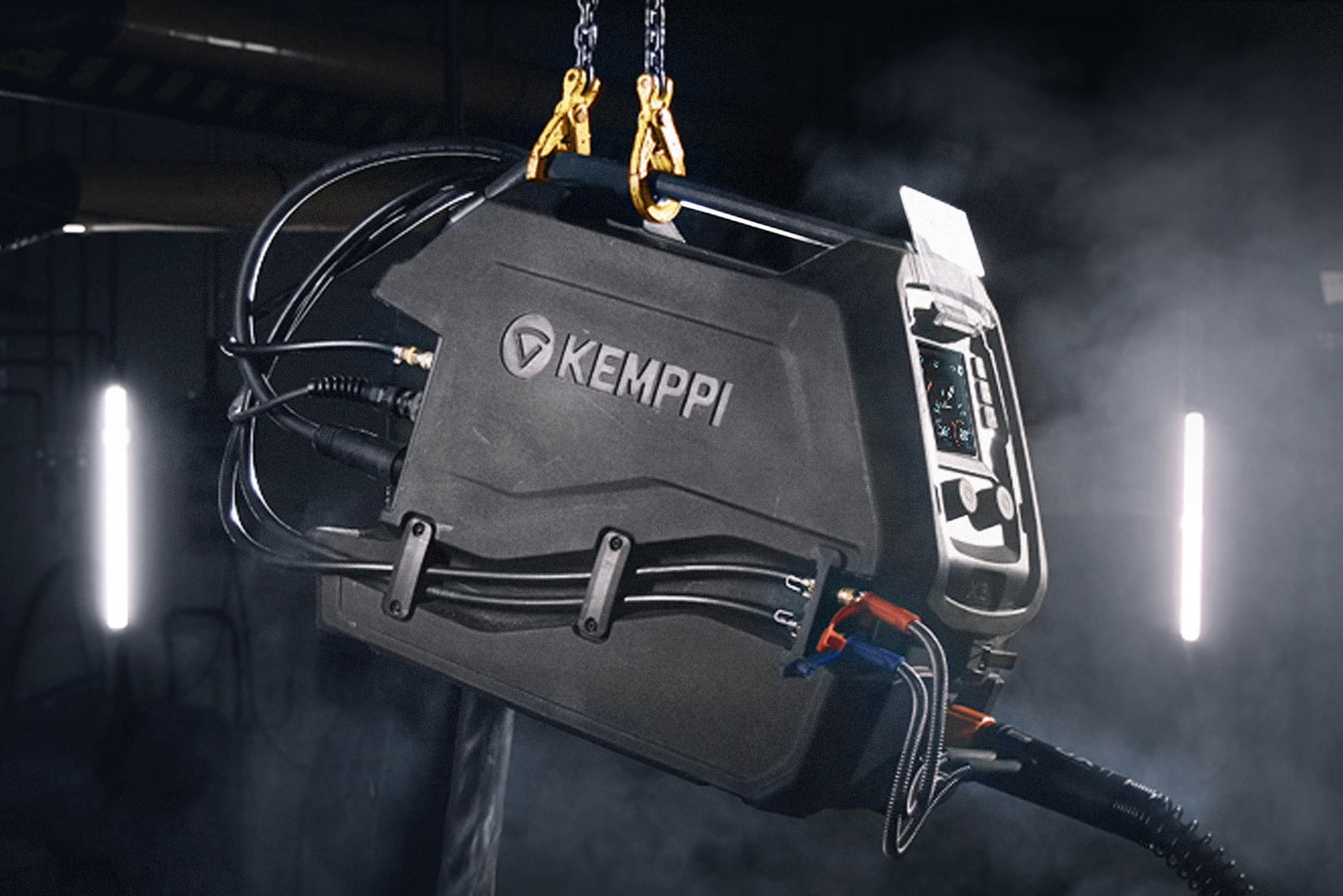

A new level of durability

The tough and robust plastic-cased wire feeder cabinet features a dual-wall construction designed to withstand the knocks of industrial use in heavy welding and fabrication applications. Now, also available for 200mm wire spools.

Videos

Related blogs

FastMig X - classic never goes out of style

When welding demanding industrial applications, do not settle for less than the highest-class welding solutions. Kemppi’s intelligent FastMig X is THE industrial MIG welding machine when you need a professional workhorse with unparalleled quality and durability.

FastMig, Manual welding, MIG/MAG welding

MIG/MAG welding

MIG welding applications, equipment, and techniques

MIG/MAG welding, Shielding gas

The significance of usability in industrial welding

We asked two professional welders – Meyer’s Jukka Hahko and Dinolift’s Pasi Laakso – what good usability means in industrial welding.

Industrial welding, Manual welding, Usability, User experience, Welder, Welding expertise, Welding production

How to Avoid the Most Common MIG/MAG Welding Defects

The quality requirements in welding production increase with the optimization of structures as well as the development of materials and welding processes. Welding defects can, at worst, cause serious accidents and structural damage, so it is important to avoid them and understand the mechanisms that create them. In this text, we present the most common MIG/MAG welding defects and the ways to best avoid them.

MIG/MAG welding, Welding defect, Welding standardization

MIG/MAG welding arc types

In MIG/MAG welding, the mode of material transfer between the filler wire and the weld pool changes in line with the welding current.

Arc welding, Manual welding, MIG welding, MIG/MAG welding

How Rapid Welding and Kemppi Built a Partnership That Lasts

Rapid Welding has worked with Kemppi since the company opened in 1990. Co-founder and Managing Director Roy Edwards highlighted the principles behind that 36-year partnership, from choosing the right welding solution and supporting equipment throughout its life to addressing the skills shortage and finding the right place for automation and laser welding.

Cooperation, Partners

Safety that keeps up with welders' challenges and changing risks

Welding safety has become increasingly demanding. The hazards at the arc remain constant, but modern working conditions mean exposure can accumulate over longer shifts and in tighter indoor spaces. As a result, welding PPE needs to be treated as both protection for the welder and proof of compliance. At Kemppi, welding safety PPE is designed and validated in practice through clear requirements, welder-led feedback, and verified compliance with EU PPE Regulation 2016/425, CE marking processes, and relevant EN standards.

Welding safety, Work safety, Welding helmet

See all blog posts

X3 Wire Feeder HD200 Rotameter — Technical data

Description	Value
Supply voltage	48 V
Supply current at maximum load	6.3 A
Idle power	6 W
Welding current 60%	450 A
Welding current 100%	380 A
EMC class	A
Welding connection type	Euro
Wire feed mechanism	4-roll, Single-motor
Diameter of feed rolls	32 mm
Filler wire diameter, Fe	0.8 ... 1.6 mm
Filler wire diameter, Ss	0.8 ... 1.6 mm
Filler wire diameter, MC/FC	0.8 ... 2 mm
Filler wire diameter, Al	0.8 ... 2.4 mm
Wire feed speed	0.5 ... 25 m/min
Maximum wire spool weight	5 kg
Maximum wire spool diameter	200 mm
Maximum shielding gas pressure	0.5 MPa
Control panel, display	LCD
Control panel, controls	2 control knobs, Push buttons
Control panel, type of installation	Built-in
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Degree of protection (fully installed)	IP23
External dimensions, length	560 mm
External dimensions, width	235 mm
External dimensions, height	325 mm
Weight without accessories	8.9 kg
Standards	IEC 60974-5, 10

X3 Wire Feeder HD200 — Technical data

Description	Value
Supply voltage	48 V
Supply current at maximum load	6.3 A
Idle power	6 W
Welding current 60%	450 A
Welding current 100%	380 A
EMC class	A
Welding connection type	Euro
Wire feed mechanism	4-roll, Single-motor
Diameter of feed rolls	32 mm
Filler wire diameter, Fe	0.8 ... 1.6 mm
Filler wire diameter, Ss	0.8 ... 1.6 mm
Filler wire diameter, MC/FC	0.8 ... 2 mm
Filler wire diameter, Al	0.8 ... 2.4 mm
Wire feed speed	0.5 ... 25 m/min
Maximum wire spool weight	5 kg
Maximum wire spool diameter	200 mm
Maximum shielding gas pressure	0.5 MPa
Control panel, display	LCD
Control panel, controls	2 control knobs, Push buttons
Control panel, type of installation	Built-in
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Degree of protection (fully installed)	IP23
External dimensions, length	560 mm
External dimensions, width	235 mm
External dimensions, height	325 mm
Weight without accessories	8.9 kg
Standards	IEC 60974-5, 10

X3 Wire Feeder HD300 Rotameter — Technical data

Description	Value
Supply voltage	48 V
Supply current at maximum load	6.3 A
Idle power	6 W
Welding current 60%	450 A
Welding current 100%	380 A
EMC class	A
Welding connection type	Euro
Wire feed mechanism	4-roll, Single-motor
Diameter of feed rolls	32 mm
Filler wire diameter, Fe	0.8 ... 2 mm
Filler wire diameter, Ss	0.8 ... 2 mm
Filler wire diameter, MC/FC	0.8 ... 2.4 mm
Filler wire diameter, Al	0.8 ... 2.4 mm
Wire feed speed	0.5 ... 25 m/min
Maximum wire spool weight	20 kg
Maximum wire spool diameter	300 mm
Maximum shielding gas pressure	0.5 MPa
Control panel, display	LCD
Control panel, controls	2 control knobs, Push buttons
Control panel, type of installation	Built-in
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Degree of protection (fully installed)	IP23
External dimensions, length	670 mm
External dimensions, width	240 mm
External dimensions, height	465 mm
Weight without accessories	14.4 kg
Standards	IEC 60974-5, 10

X3 Wire Feeder HD300 — Technical data

Description	Value
Supply voltage	48 V
Supply current at maximum load	6.3 A
Idle power	6 W
Welding current 60%	450 A
Welding current 100%	380 A
EMC class	A
Welding connection type	Euro
Wire feed mechanism	4-roll, Single-motor
Diameter of feed rolls	32 mm
Filler wire diameter, Fe	0.8 ... 2 mm
Filler wire diameter, Ss	0.8 ... 2 mm
Filler wire diameter, MC/FC	0.8 ... 2.4 mm
Filler wire diameter, Al	0.8 ... 2.4 mm
Wire feed speed	0.5 ... 25 m/min
Maximum wire spool weight	20 kg
Maximum wire spool diameter	300 mm
Maximum shielding gas pressure	0.5 MPa
Control panel, display	LCD
Control panel, controls	2 control knobs, Push buttons
Control panel, type of installation	Built-in
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Degree of protection (fully installed)	IP23
External dimensions, length	670 mm
External dimensions, width	240 mm
External dimensions, height	465 mm
Weight without accessories	14.4 kg
Standards	IEC 60974-5, 10

X3P Power Source Pulse 400 WM — Technical data

Description	Value
Mains connection voltage	380...460 V ±10 %
Mains connection voltage (MV low range)	220...230 V ±10 %
Mains connection phases	3~50/60 Hz
Mains connection cable type	H07RN-F
Mains connection cable size	6 mm²
Maximum supply current [I1max]	28 ... 25 A
Effective supply current [I1eff]	23 ... 19 A
Rated maximum input power [S1max]	20 kVA
Mains fuse	25 A
Mains fuse (@MV low range)	32 A
Idle state power consumption [P1idle]	21 W
No-load voltage [U0]	60 ... 75 V
Output at +40 °C, rated max current, MIG	400 A
Output at +40 °C, 60% MIG	400 A
Output at +40 °C, 100% MIG	350 A
Output at +40 °C, 60% MMA	400 A
Output at +40 °C, 100% MMA	350 A
Output, duty cycle % at rated max. current, MIG (@MV low range)	40 %
Output at +40 °C, rated max current, MIG (@MV low range)	400 A
Output at +40 °C, 100% MIG (@MV low range)	300 A
Output range, MIG	15 A / 10 V ... 400 A / 50 V
Output range, MMA	15 A / 10 V ... 400 A / 50 V
Output range, MIG (@MV low range)	15 A / 10 V ... 400 A / 50 V
Output range, MMA (@MV low range)	15 A / 10 V ... 400 A / 50 V
Voltage adjustment range, MIG	8 ... 50 V
VRD voltage	24 V
Power factor at rated maximum current [λ]	0.8
Efficiency at rated maximum current [η]	89 %
EMC class	A
Minimum short-circuit power of supply network [Ssc]	2.9 MVA
Voltage supply for auxiliary devices	48 V
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Recommended minimum generator power [Sgen]	30 kVA
Cooling power at 1 l/min	1 kW
Recommended coolant	MGP 4456
Maximum coolant pressure	0.4 MPa
Tank volume	3 l
Degree of protection (fully installed)	IP23
External dimensions, length	698 mm
External dimensions, width	251 mm
External dimensions, height	703 mm
Weight without accessories	58.2 kg
Standards	IEC 60974-1, -2, -10

X3P Power Source Pulse 400 GM — Technical data

Description	Value
Mains connection voltage	380...460 V ±10 %
Mains connection voltage (MV low range)	220...230 V ±10 %
Mains connection phases	3~50/60 Hz
Mains connection cable type	H07RN-F
Mains connection cable size	6 mm²
Maximum supply current [I1max]	28 ... 25 A
Effective supply current [I1eff]	23 ... 19 A
Rated maximum input power [S1max]	20 kVA
Mains fuse	25 A
Mains fuse (@MV low range)	32 A
Idle state power consumption [P1idle]	21 W
No-load voltage [U0]	60 ... 75 V
Output at +40 °C, rated max current, MIG	400 A
Output at +40 °C, 60% MIG	400 A
Output at +40 °C, 100% MIG	350 A
Output at +40 °C, 60% MMA	400 A
Output at +40 °C, 100% MMA	350 A
Output, duty cycle % at rated max. current, MIG (@MV low range)	40 %
Output at +40 °C, rated max current, MIG (@MV low range)	400 A
Output at +40 °C, 100% MIG (@MV low range)	300 A
Output range, MIG	15 A / 10 V ... 400 A / 50 V
Output range, MMA	15 A / 10 V ... 400 A / 50 V
Output range, MIG (@MV low range)	15 A / 10 V ... 400 A / 50 V
Output range, MMA (@MV low range)	15 A / 10 V ... 400 A / 50 V
Voltage adjustment range, MIG	8 ... 50 V
VRD voltage	24 V
Power factor at rated maximum current [λ]	0.8
Efficiency at rated maximum current [η]	89 %
EMC class	A
Minimum short-circuit power of supply network [Ssc]	2.9 MVA
Voltage supply for auxiliary devices	48 V
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Recommended minimum generator power [Sgen]	30 kVA
Degree of protection (fully installed)	IP23
External dimensions, length	698 mm
External dimensions, width	251 mm
External dimensions, height	451 mm
Weight without accessories	41 kg
Standards	IEC 60974-1, -10

X3S Power Source Syn 400 WM — Technical data

Description	Value
Mains connection voltage	380...460 V ±10 %
Mains connection voltage (MV low range)	220...230 V ±10 %
Mains connection phases	3~50/60 Hz
Mains connection cable type	H07RN-F
Mains connection cable size	6 mm²
Maximum supply current [I1max]	31 ... 23 A
Effective supply current [I1eff]	24 ... 18 A
Rated maximum input power [S1max]	20 kVA
Mains fuse	25 A
Mains fuse (@MV low range)	32 A
Idle state power consumption [P1idle]	21 W
No-load voltage [U0]	55 ... 67 V
Output at +40 °C, rated max current, MIG	400 A
Output at +40 °C, 60% MIG	400 A
Output at +40 °C, 100% MIG	350 A
Output at +40 °C, 60% MMA	400 A
Output at +40 °C, 100% MMA	350 A
Output, duty cycle % at rated max. current, MIG (@MV low range)	40 %
Output at +40 °C, rated max current, MIG (@MV low range)	400 A
Output at +40 °C, 100% MIG (@MV low range)	300 A
Output range, MIG	15 A / 12 V ... 400 A / 40 V
Output range, MMA	15 A / 10 V ... 400 A / 41 V
Output range, MIG (@MV low range)	15 A / 12 V ... 400 A / 40 V
Output range, MMA (@MV low range)	15 A / 10 V ... 400 A / 41 V
Voltage adjustment range, MIG	8 ... 45 V
VRD voltage	24 V
EMC class	A
Minimum short-circuit power of supply network [Ssc]	2.4 MVA
Voltage supply for auxiliary devices	48 V
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Recommended minimum generator power [Sgen]	25 kVA
Cooling power at 1 l/min	1 kW
Recommended coolant	MGP 4456
Maximum coolant pressure	0.4 MPa
Tank volume	3 l
Degree of protection (fully installed)	IP23
External dimensions, length	698 mm
External dimensions, width	251 mm
External dimensions, height	703 mm
Weight without accessories	57 kg
Standards	IEC 60974-1, -2, -10

X3S Power Source Syn 400 GM — Technical data

Description	Value
Mains connection voltage	380...460 V ±10 %
Mains connection voltage (MV low range)	220...230 V ±10 %
Mains connection phases	3~50/60 Hz
Mains connection cable type	H07RN-F
Mains connection cable size	6 mm²
Maximum supply current [I1max]	31 ... 23 A
Effective supply current [I1eff]	24 ... 18 A
Rated maximum input power [S1max]	20 kVA
Mains fuse	25 A
Mains fuse (@MV low range)	32 A
Idle state power consumption [P1idle]	21 W
No-load voltage [U0]	55 ... 67 V
Output at +40 °C, rated max current, MIG	400 A
Output at +40 °C, 60% MIG	400 A
Output at +40 °C, 100% MIG	350 A
Output at +40 °C, 60% MMA	400 A
Output at +40 °C, 100% MMA	350 A
Output, duty cycle % at rated max. current, MIG (@MV low range)	40 %
Output at +40 °C, rated max current, MIG (@MV low range)	400 A
Output at +40 °C, 100% MIG (@MV low range)	300 A
Output range, MIG	15 A / 12 V ... 400 A / 40 V
Output range, MMA	15 A / 10 V ... 400 A / 41 V
Output range, MIG (@MV low range)	15 A / 12 V ... 400 A / 40 V
Output range, MMA (@MV low range)	15 A / 10 V ... 400 A / 41 V
Voltage adjustment range, MIG	8 ... 45 V
VRD voltage	24 V
EMC class	A
Minimum short-circuit power of supply network [Ssc]	2.4 MVA
Voltage supply for auxiliary devices	48 V
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Recommended minimum generator power [Sgen]	25 kVA
Degree of protection (fully installed)	IP23
External dimensions, length	698 mm
External dimensions, width	251 mm
External dimensions, height	451 mm
Weight without accessories	39.7 kg
Standards	IEC 60974-1, -10

X3P Power Source Pulse 450 W — Technical data

Description	Value
Mains connection voltage	380...415 V ±10 %
Mains connection phases	3~50/60 Hz
Mains connection cable type	H07RN-F
Mains connection cable size	4 mm²
Maximum supply current [I1max]	33 ... 30 A
Effective supply current [I1eff]	25 ... 23 A
Rated maximum input power [S1max]	21 kVA
Mains fuse	25 A
Idle state power consumption [P1idle]	15 W
No-load voltage [U0]	61 ... 67 V
Open circuit voltage [Uav]	60 ... 65 V
Output at +40 °C, 60% MIG	450 A
Output at +40 °C, 100% MIG	380 A
Output at +40 °C, 60% MMA	430 A
Output at +40 °C, 100% MMA	360 A
Output range, MIG	15 A / 12 V ... 450 A / 45 V
Output range, MMA	15 A / 15 V ... 430 A / 46 V
Voltage adjustment range, MIG	8 ... 50 V
VRD voltage	24 V
Power factor at rated maximum current [λ]	0.88
Efficiency at rated maximum current [η]	87 %
EMC class	A
Minimum short-circuit power of supply network [Ssc]	6 MVA
Voltage supply for auxiliary devices	48 V
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Recommended minimum generator power [Sgen]	25 kVA
Cooling power at 1 l/min	1.2 kW
Recommended coolant	MGP 4456 (Kemppi mixture)
Maximum coolant pressure	0.4 MPa
Tank volume	3 l
Degree of protection (fully installed)	IP23
External dimensions, length	698 mm
External dimensions, width	251 mm
External dimensions, height	613 mm
Weight without accessories	47 kg
Standards	IEC 60974-1, -2, -10

X3P Power Source Pulse 450 G — Technical data

Description	Value
Mains connection voltage	380...415 V ±10 %
Mains connection phases	3~50/60 Hz
Mains connection cable type	H07RN-F
Mains connection cable size	4 mm²
Maximum supply current [I1max]	33 ... 30 A
Effective supply current [I1eff]	25 ... 23 A
Rated maximum input power [S1max]	21 kVA
Mains fuse	25 A
Idle state power consumption [P1idle]	15 W
No-load voltage [U0]	61 ... 67 V
Open circuit voltage [Uav]	60 ... 65 V
Output at +40 °C, 60% MIG	450 A
Output at +40 °C, 100% MIG	380 A
Output at +40 °C, 60% MMA	430 A
Output at +40 °C, 100% MMA	360 A
Output range, MIG	15 A / 12 V ... 450 A / 45 V
Output range, MMA	15 A / 15 V ... 430 A / 46 V
Voltage adjustment range, MIG	8 ... 50 V
VRD voltage	24 V
Power factor at rated maximum current [λ]	0.88
Efficiency at rated maximum current [η]	87 %
EMC class	A
Minimum short-circuit power of supply network [Ssc]	6 MVA
Voltage supply for auxiliary devices	48 V
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Recommended minimum generator power [Sgen]	25 kVA
Degree of protection (fully installed)	IP23
External dimensions, length	698 mm
External dimensions, width	251 mm
External dimensions, height	361 mm
Weight without accessories	35 kg
Standards	IEC 60974-1, -10

X3S Power Source Syn 420 W — Technical data

Description	Value
Mains connection voltage	380...415 V ±10 %
Mains connection phases	3~50/60 Hz
Mains connection cable type	H07RN-F
Mains connection cable size	4 mm²
Maximum supply current [I1max]	29 ... 27 A
Effective supply current [I1eff]	23 ... 21 A
Rated maximum input power [S1max]	20 kVA
Mains fuse	25 A
Idle state power consumption [P1idle]	15 W
No-load voltage [U0]	54 ... 59 V
Open circuit voltage [Uav]	54 ... 59 V
Output at +40 °C, 60% MIG	420 A
Output at +40 °C, 100% MIG	350 A
Output at +40 °C, 60% MMA	400 A
Output at +40 °C, 100% MMA	330 A
Output range, MIG	15 A / 12 V ... 420 A / 40 V
Output range, MMA	15 A / 10 V ... 400 A / 41 V
Voltage adjustment range, MIG	8 ... 45 V
Power factor at rated maximum current [λ]	0.85
Efficiency at rated maximum current [η]	89 %
EMC class	A
Minimum short-circuit power of supply network [Ssc]	6 MVA
Voltage supply for auxiliary devices	48 V
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Recommended minimum generator power [Sgen]	25 kVA
Cooling power at 1 l/min	1.2 kW
Recommended coolant	MGP 4456 (Kemppi mixture)
Maximum coolant pressure	0.4 MPa
Tank volume	3 l
Degree of protection (fully installed)	IP23
External dimensions, length	698 mm
External dimensions, width	251 mm
External dimensions, height	613 mm
Weight without accessories	47 kg
Standards	IEC 60974-1, -2, -10

X3S Power Source Syn 420 G — Technical data

Description	Value
Mains connection voltage	380...415 V ±10 %
Mains connection phases	3~50/60 Hz
Mains connection cable type	H07RN-F
Mains connection cable size	4 mm²
Maximum supply current [I1max]	29 ... 27 A
Effective supply current [I1eff]	23 ... 21 A
Rated maximum input power [S1max]	20 kVA
Mains fuse	25 A
Idle state power consumption [P1idle]	15 W
No-load voltage [U0]	54 ... 59 V
Open circuit voltage [Uav]	54 ... 59 V
Output at +40 °C, 60% MIG	420 A
Output at +40 °C, 100% MIG	350 A
Output at +40 °C, 60% MMA	400 A
Output at +40 °C, 100% MMA	330 A
Output range, MIG	15 A / 12 V ... 420 A / 40 V
Output range, MMA	15 A / 10 V ... 400 A / 41 V
Voltage adjustment range, MIG	8 ... 45 V
Power factor at rated maximum current [λ]	0.85
Efficiency at rated maximum current [η]	89 %
EMC class	A
Minimum short-circuit power of supply network [Ssc]	6 MVA
Voltage supply for auxiliary devices	48 V
Wired communication type	CAN bus
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Recommended minimum generator power [Sgen]	25 kVA
Degree of protection (fully installed)	IP23
External dimensions, length	698 mm
External dimensions, width	251 mm
External dimensions, height	361 mm
Weight without accessories	35 kg
Standards	IEC 60974-1, -10

GX 405WS 8m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Liquid
Minimum coolant flow rate	1 l/min
Minimum cooling power at 1 l/min	0.9 kW
Contact tip	M10x1
Method of guidance	Manual
Load capacity 100% / Ar + 18% CO₂	300 A
Load capacity test, filler wire diameter	1.6 mm
Load capacity test, stick out length	22 mm
Load capacity test, gas flow	20 l/min
Gun handle	Yes
Neck type	Standard
Neck dimensions: length	134 mm
Neck dimensions: height	100 mm
Neck dimensions: angle	48 °
Welding torch cable length	8 m
Remote control	GXR10 (optional)
Standards	IEC 60974-7

GXe 405G 5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Air
Contact tip	M10x1
Method of guidance	Manual
Load capacity 35% / Ar + 18% CO₂	400 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.6 mm
Load capacity test, stick out length	22 mm
Load capacity test, gas flow	20 l/min
Gun handle	Yes
Neck type	Rotating
Neck dimensions: length	149 mm
Neck dimensions: height	96 mm
Neck dimensions: angle	50 °
Welding torch cable length	5 m
Remote control	Optional
Standards	IEC 60974-7

GXe 405G 3.5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Air
Contact tip	M10x1
Method of guidance	Manual
Load capacity 35% / Ar + 18% CO₂	400 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.6 mm
Load capacity test, stick out length	22 mm
Load capacity test, gas flow	20 l/min
Gun handle	Yes
Neck type	Rotating
Neck dimensions: length	149 mm
Neck dimensions: height	96 mm
Neck dimensions: angle	50 °
Welding torch cable length	3.5 m
Remote control	Optional
Standards	IEC 60974-7

GXe 505W 5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Liquid
Minimum coolant flow rate	1 l/min
Minimum cooling power at 1 l/min	0.9 kW
Contact tip	M10x1
Method of guidance	Manual
Load capacity 100% / Ar + 18% CO₂	500 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.6 mm
Load capacity test, stick out length	22 mm
Load capacity test, gas flow	20 l/min
Gun handle	Yes
Neck type	Standard
Neck dimensions: length	163 mm
Neck dimensions: height	105 mm
Neck dimensions: angle	48 °
Welding torch cable length	5 m
Remote control	Optional
Standards	IEC 60974-7

GXe 305W 5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Liquid
Minimum coolant flow rate	1 l/min
Minimum cooling power at 1 l/min	0.9 kW
Contact tip	M10x1
Method of guidance	Manual
Load capacity 100% / Ar + 18% CO₂	300 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.2 mm
Load capacity test, stick out length	18 mm
Load capacity test, gas flow	15 l/min
Gun handle	Yes
Neck type	Standard
Neck dimensions: length	126 mm
Neck dimensions: height	93 mm
Neck dimensions: angle	48 °
Welding torch cable length	5 m
Remote control	Optional
Standards	IEC 60974-7

GX305GS 8m — Technical data

Description	Value
Welding torch cable length	8 m

GXe 405W 3.5m — Technical data

Description	Value
Welding connection type	Euro
Filler wire diameter	0.8 ... 1.6 mm
Filler wire diameter, Fe	0.8 ... 1.6 mm
Filler wire diameter, Fe-MC/FC	0.9 ... 1.6 mm
Filler wire diameter, Ss	0.8 ... 1.6 mm
Filler wire diameter, Ss-MC/FC	0.9 ... 1.6 mm
Filler wire diameter, Al	0.8 ... 1.6 mm
Type of cooling	Liquid
Minimum coolant flow rate	1 l/min
Minimum cooling power at 1 l/min	0.9 kW
Contact tip	M10x1
Method of guidance	Manual
Load capacity 100% / Ar + 18% CO₂	400 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.6 mm
Load capacity test, stick out length	22 mm
Load capacity test, gas flow	20 l/min
Gun handle	Yes
Neck type	Standard
Neck dimensions: length	144 mm
Neck dimensions: height	99 mm
Neck dimensions: angle	48 °
Welding torch cable length	3.5 m
Remote control	Optional
LED light	No
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Standards	IEC 60974-7

GXe 405W 5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Liquid
Minimum coolant flow rate	1 l/min
Minimum cooling power at 1 l/min	0.9 kW
Contact tip	M10x1
Method of guidance	Manual
Load capacity 100% / Ar + 18% CO₂	400 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.6 mm
Load capacity test, stick out length	22 mm
Load capacity test, gas flow	20 l/min
Gun handle	Yes
Neck type	Standard
Neck dimensions: length	144 mm
Neck dimensions: height	99 mm
Neck dimensions: angle	48 °
Welding torch cable length	5 m
Remote control	Optional
Standards	IEC 60974-7

GXe 505W 3.5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Liquid
Minimum coolant flow rate	1 l/min
Minimum cooling power at 1 l/min	0.9 kW
Contact tip	M10x1
Method of guidance	Manual
Load capacity 100% / Ar + 18% CO₂	500 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.6 mm
Load capacity test, stick out length	22 mm
Load capacity test, gas flow	20 l/min
Gun handle	Yes
Neck type	Standard
Neck dimensions: length	163 mm
Neck dimensions: height	105 mm
Neck dimensions: angle	48 °
Welding torch cable length	3.5 m
Remote control	Optional
Standards	IEC 60974-7

GX 305GMN 3.5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Air
Contact tip	M10x1
Method of guidance	Manual
Load capacity 35% / Ar + 18% CO₂	350 A
Load capacity test, filler wire diameter	1.2 mm
Load capacity test, stick out length	18 mm
Load capacity test, gas flow	15 l/min
Gun handle	Yes
Neck type	Changeable, Rotating
Neck dimensions: length	117 mm
Neck dimensions: height	97 mm
Neck dimensions: angle	50 °
Welding torch cable length	3.5 m
Remote control	GXR10 (optional)
Standards	IEC 60974-7

GXe 305G 3.5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Air
Contact tip	M10x1
Method of guidance	Manual
Load capacity 35% / Ar + 18% CO₂	300 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.2 mm
Load capacity test, stick out length	18 mm
Load capacity test, gas flow	15 l/min
Gun handle	Yes
Neck type	Rotating
Neck dimensions: length	135 mm
Neck dimensions: height	96 mm
Neck dimensions: angle	50 °
Welding torch cable length	3.5 m
Remote control	Optional
Standards	IEC 60974-7

GXe 305W 3.5m — Technical data

Description	Value
Welding connection type	Euro
Filler wire diameter	0.8 ... 1.6 mm
Filler wire diameter, Fe	0.8 ... 1.6 mm
Filler wire diameter, Fe-MC/FC	0.9 ... 1.6 mm
Filler wire diameter, Ss	0.8 ... 1.6 mm
Filler wire diameter, Ss-MC/FC	0.9 ... 1.6 mm
Filler wire diameter, Al	0.8 ... 1.6 mm
Type of cooling	Liquid
Minimum coolant flow rate	1 l/min
Minimum cooling power at 1 l/min	0.9 kW
Contact tip	M10x1
Method of guidance	Manual
Load capacity 100% / Ar + 18% CO₂	300 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.2 mm
Load capacity test, stick out length	18 mm
Load capacity test, gas flow	15 l/min
Gun handle	Yes
Neck type	Standard
Neck dimensions: length	126 mm
Neck dimensions: height	93 mm
Neck dimensions: angle	48 °
Welding torch cable length	3.5 m
Remote control	Optional
LED light	No
Operating temperature	-20 ... 40 °C
Storage temperature	-40 ... 60 °C
Standards	IEC 60974-7

GXe 305G 5m — Technical data

Description	Value
Welding connection type	Euro
Type of cooling	Air
Contact tip	M10x1
Method of guidance	Manual
Load capacity 35% / Ar + 18% CO₂	300 A
Load capacity test, filler wire material	Fe
Load capacity test, filler wire diameter	1.2 mm
Load capacity test, stick out length	18 mm
Load capacity test, gas flow	15 l/min
Gun handle	Yes
Neck type	Rotating
Neck dimensions: length	135 mm
Neck dimensions: height	96 mm
Neck dimensions: angle	50 °
Welding torch cable length	5 m
Remote control	Optional
Standards	IEC 60974-7

GB - English

X3 FastMig MIG/MAG welding machine

Simply start welding

Work in tough conditions

Finish demanding jobs

Brilliantly simple, brutally effective MIG/MAG welding

X3 FastMig MIG/MAG welding machine

Main Features

Materials

FAQ

A new level of durability

Start welding fast

Meet any production targets

Versatile welding programs as standard

Lift safely

Easy access to cables and connectors

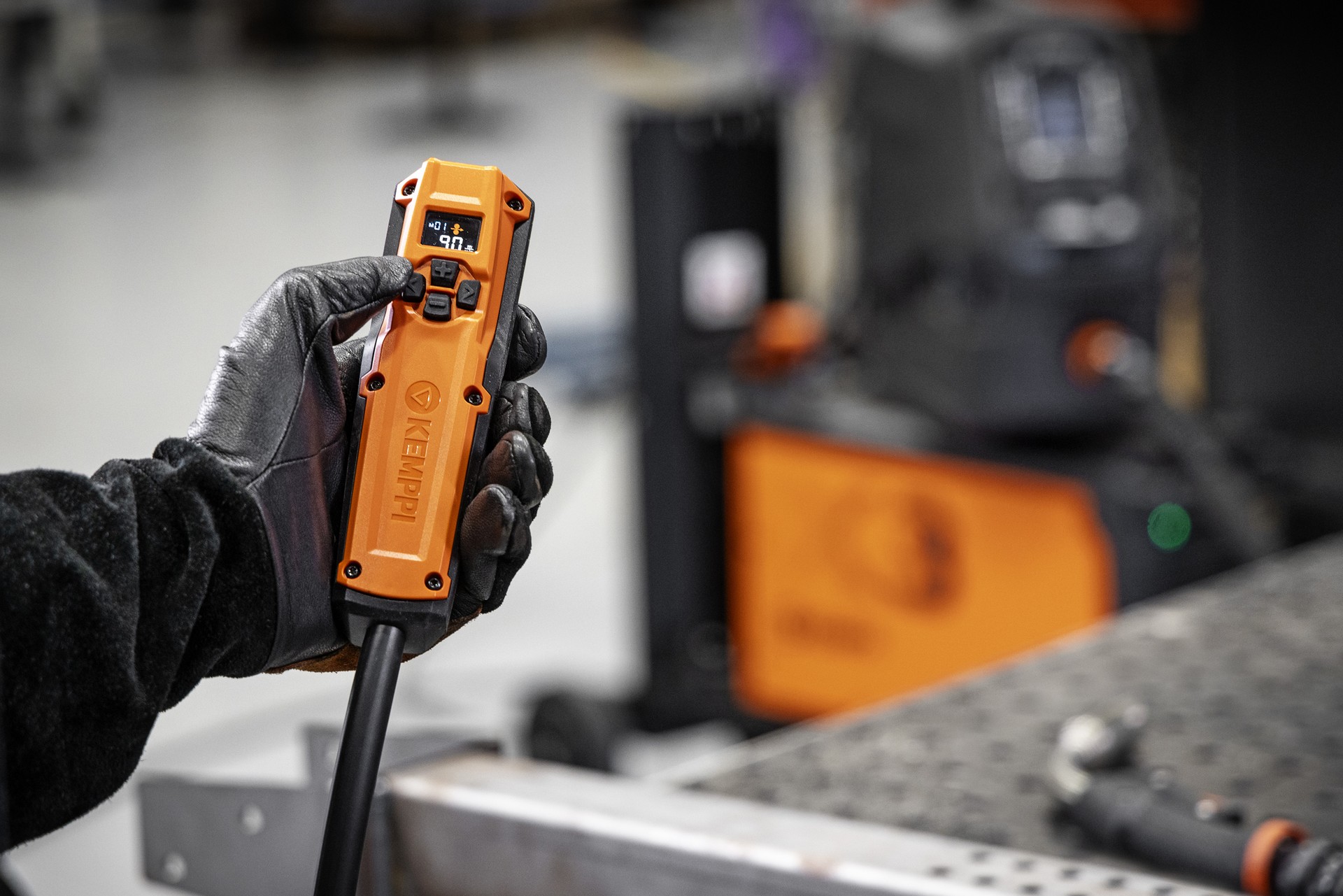

Remote welding power control

Wide-ranging materials and varying welding tasks

Videos

Related blogs

FastMig X - classic never goes out of style

MIG/MAG welding

The significance of usability in industrial welding

How to Avoid the Most Common MIG/MAG Welding Defects

MIG/MAG welding arc types

How Rapid Welding and Kemppi Built a Partnership That Lasts

Safety that keeps up with welders' challenges and changing risks

Who we are

Who we are

Quick links

Quick links

Stay up to date

The forerunners of arc welding

Kemppi

Sustainability

Governance

Partners

Choose your location and language

GB - English

X3 FastMig MIG/MAG welding machine

Simply start welding

Work in tough conditions

Finish demanding jobs

Brilliantly simple, brutally effective MIG/MAG welding

X3 FastMig MIG/MAG welding machine

Main Features

Materials

FAQ

A new level of durability

Start welding fast

Meet any production targets

Versatile welding programs as standard

Lift safely

Easy access to cables and connectors

Remote welding power control

Wide-ranging materials and varying welding tasks

Videos

Related blogs

FastMig X - classic never goes out of style

MIG/MAG welding

The significance of usability in industrial welding

How to Avoid the Most Common MIG/MAG Welding Defects

MIG/MAG welding arc types

How Rapid Welding and Kemppi Built a Partnership That Lasts

Safety that keeps up with welders' challenges and changing risks

Who we are

Who we are

Quick links

Quick links

Social media

Stay up to date

The forerunners of arc welding
