Three solutions for welding robotization

The most important criteria when choosing a welding robotization solution are the size and structure of the workpiece as well as production volume. The size of the workpiece is the most critical factor and largely determines how automation should be implemented. For example, it affects the size and reach of the robot and whether a turntable or a portal is also needed.

The structure of the workpiece must also be such that it can be welded by a robot. It is a good idea to ensure this right at the beginning of the automation project in order to save time and avoid unnecessary costs. Redesigning the product or making small adjustments to the structure can often ensure successful automation and better product quality.

When the production volume increases, logistics must also be taken into consideration to ensure that the workpiece is brought quickly to the robot and easily moved forward after welding.

Solution 1: Collaborative Robot

The lightest option for automation is to use a collaborative robot. These are suitable especially when the welds are more complex than usual, but production series are not very large and do not require high efficiency. Collaborative robots, or cobots, are lighter and more responsive than industrial robots and work together with humans. Safety systems are essential with collaborative robots too, but these are lighter and less expensive to implement compared to complete robot cells. Therefore, this solution does not take up much space or impose special requirements on the surroundings.

Solution 2: Compact Welding Cell

A more robust welding robotization solution is a compact welding cell. Various robot manufacturers supply standard welding cells, the smallest of which are the size of telephone booths. A compact welding cell is the perfect solution for raising productivity when the size of the workpiece remains constant. However, the smallest welding cells are limited by the fact that they do not include a turntable for rotating and moving the workpiece.

Solution 3: A Welding Cell Tailored To Your Needs

If a compact standard solution is not suitable for your situation, the robotic welding cell can be customized in collaboration with a professional automation integrator. It is not advisable to do the customization on your own, especially if you lack the experience. The best solution is to combine the welding equipment and know-how from a quality provider such as Kemppi with a complete automation solution provided by a professional integrator. We have successfully cooperated in such projects with Danish Inrotech, for example.

In this case, you will be faced with the choice of a robot as well as a turntable or a portal capable of meeting the requirements of the project. There is a wide range of turntables and so-called grilles available on the market. What is important is that the turntable is capable of handling not only the size but also the weight of the workpiece: the table must not bend during welding. The turntable must also be precise enough to be suitable for automation.

If the workpiece is too large to fit on a turntable, the robot can be connected to a portal. A portal enables the welding robot’s precise movements in relation to the length, depth, and height of a stationary workpiece. Of course, standard solutions are also available for larger cells and portals, but customization is often required as well.

Full benefits with the right welding equipment

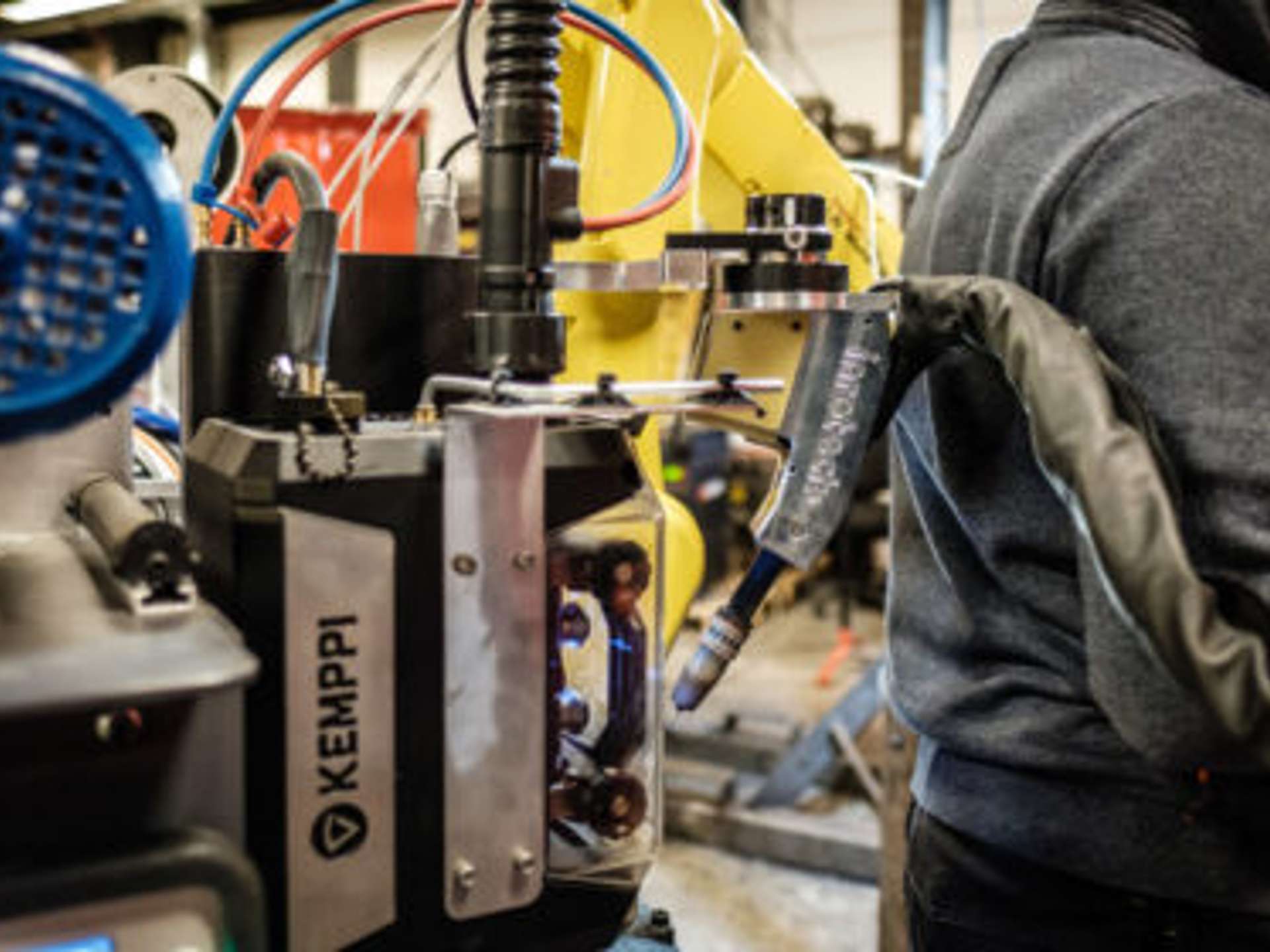

Regardless of the scale of the solution, a robot always needs compatible welding equipment. Compatibility means that the welding equipment – welding torch, power source, and wire feeder – supports the robot both mechanically and electrically. For example, Kemppi's robotic welding power sources are compatible with virtually any robot model on the market thanks to fast Fieldbus communication and adapters. Therefore, they are suitable for all of the solution models described above.

From welding robotization, one expects repeatable and consistent welding quality, reliability, adjustability as well as ease of use. These are most securely achieved by using advanced technologies optimized for automated welding. For example, Kemppi's A7 MIG Welder features Wise special processes for efficiency and ease of use. Moreover, the possibility to adjust the power source through a modern browser interface simplifies and speeds up the operation while enabling system management and monitoring.

The right solution for welding robotization is the sum of many factors. Taking the right things into account will help you to avoid overinvestment or inadequate solutions. Reliable and advanced welding equipment brings the best value from both lightweight and heavy robotization solutions.
